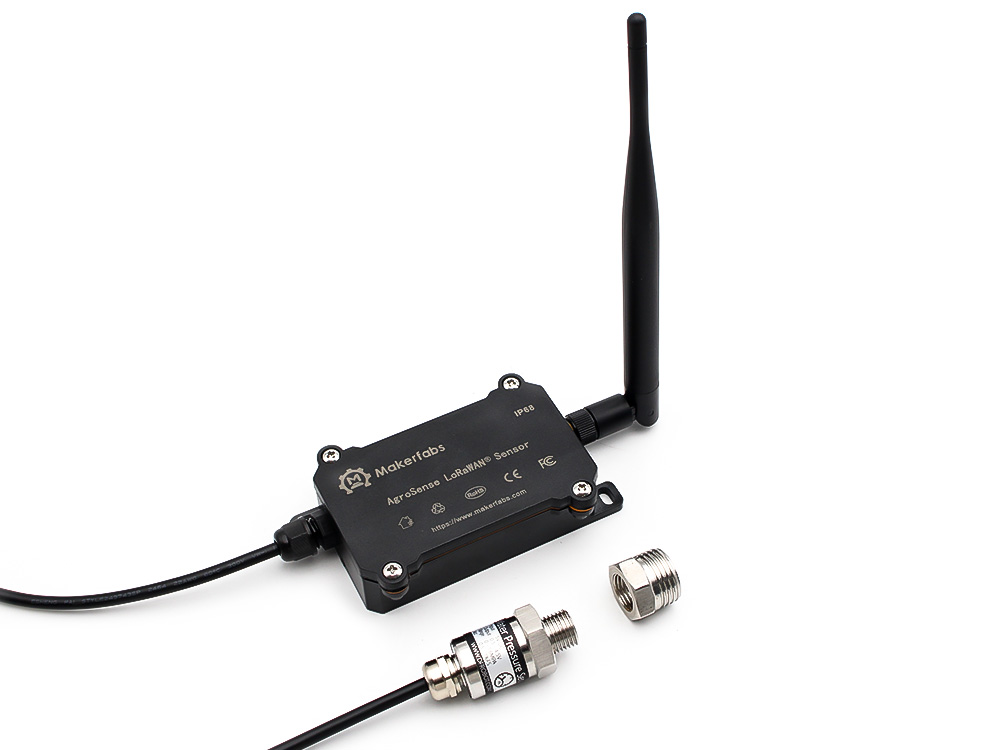

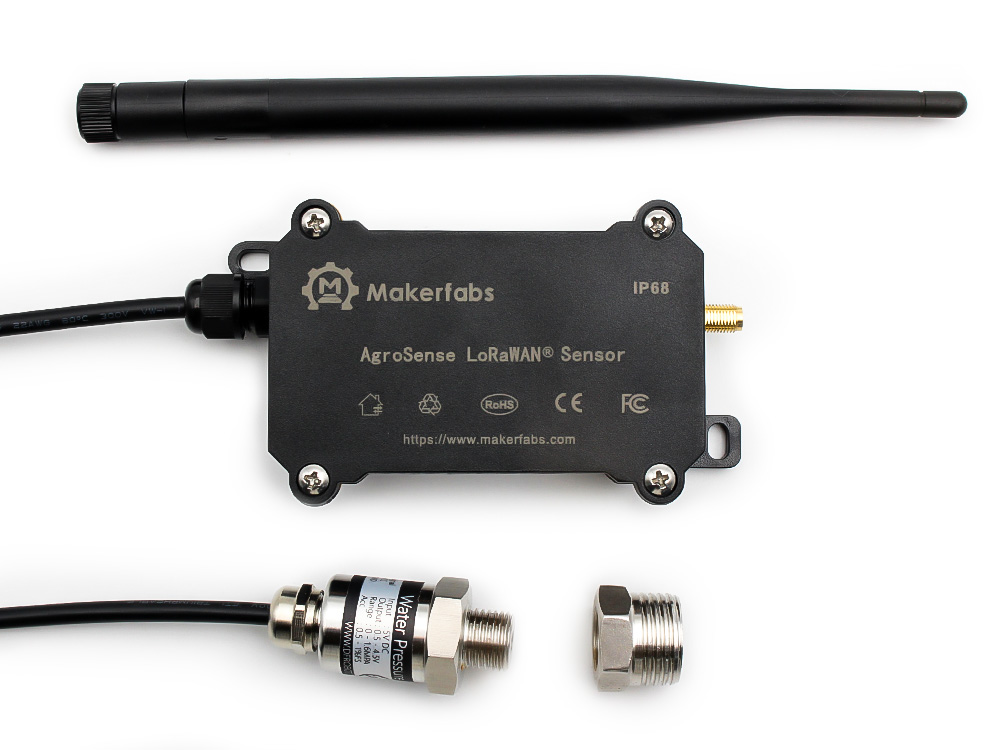

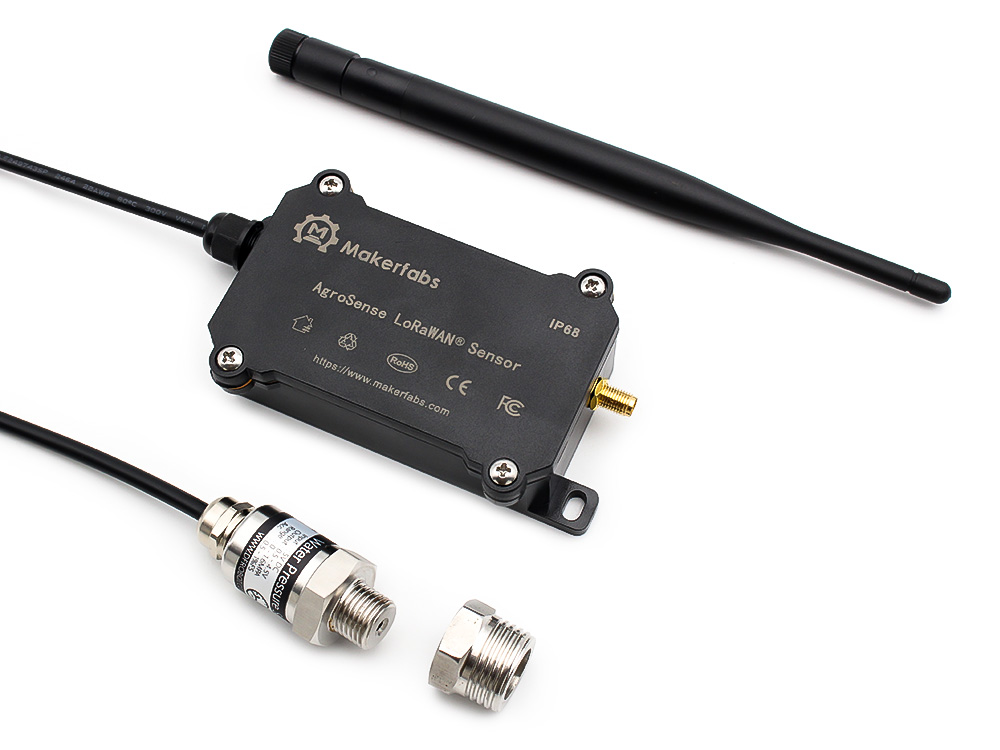

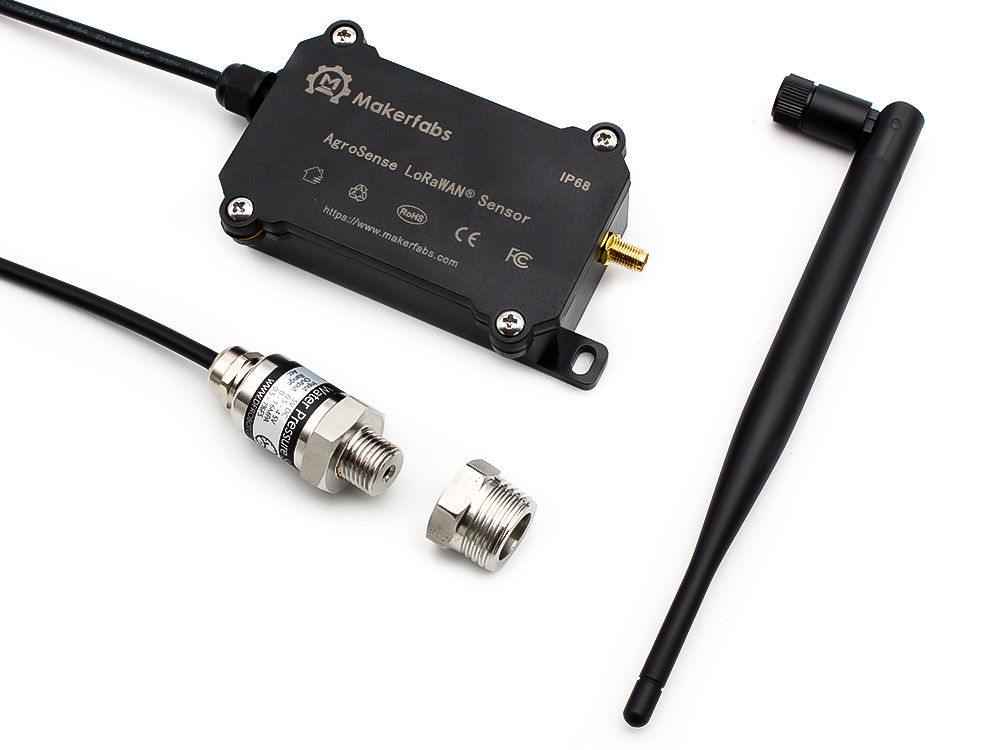

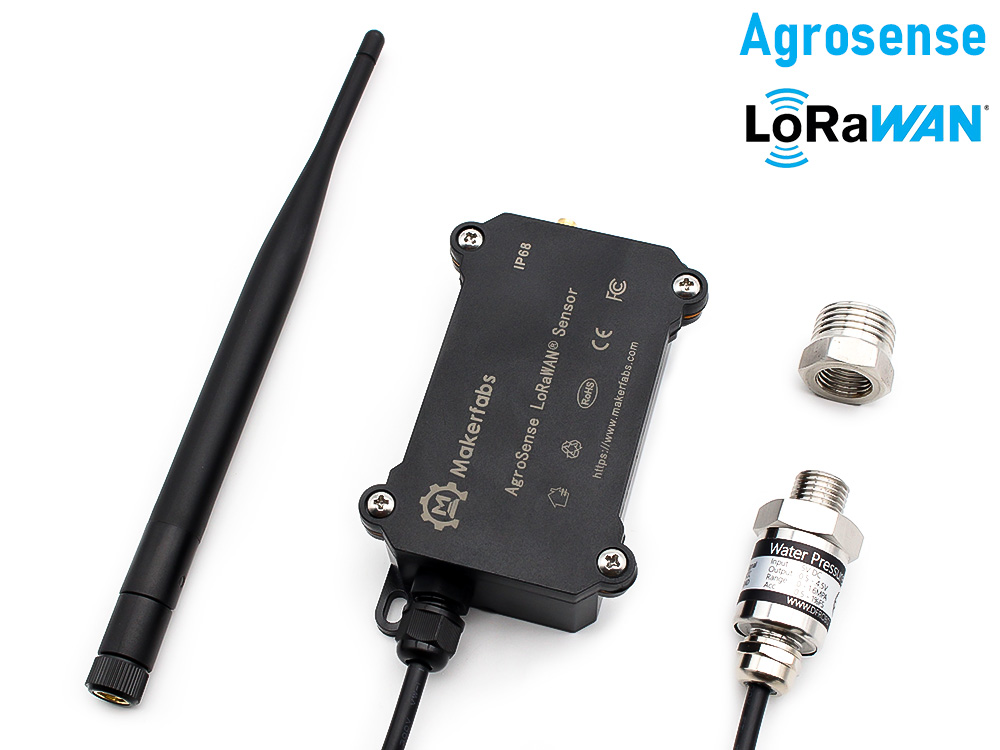

AgroSense_Pipe Pressure Sensor LoRaWAN®

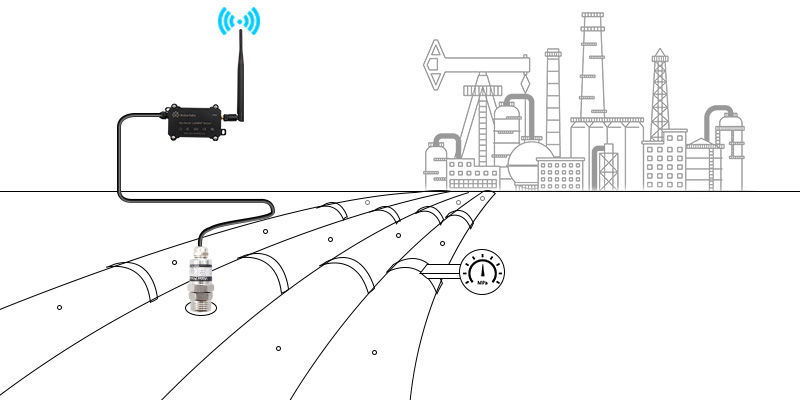

This AgroSense LoRaWAN® pressure Sensor detects water/air pressure in the pipe, and thus to check If there any blocking/frozen.
This sensor reports the data to TTN/DataCake via LoRaWAN. It also stores max 3K results in internal flash so if LoRaWAN connection temporary not available temporary for some reason It can store the data and resend them as LoRaWAN recover.
Benefits from LoRaWAN®, which ensures stability and reliability. It is capable of covering a long transmission range while maintaining low power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of deployment, design and development for end-users that can work via powering it, and setting the configuration in the cloud server.
This product mainly features:
- Compatible with Worldwide LoRaWAN®1.0.3 Networks, Support the universal frequency bands EU868/ US915;
- Long Range: At least 2km in urban scenes and 5 km in line of sight scenes.
- Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP68-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
- Simple to Use: Provides LoRaWAN® DEV EUI/ APP EUI/ APP Key, enable user to finish configuration in few steps.
- Support Data downlink for basic sensor setting;
- Data storage for LoRaWAN Network Lost.
- Support ODM: With Makerfabs’ strong ability on design/production, we provide product ODM service, include diff spec sensors/ firmware/software customization.
General Spec:
| Product Model | AGLWPP01 |
| Pressure Type | Non-corrosive liquid or gas |
| Range | 0～1.6 Mpa |
| Accuracy | ± 0.5% FS |
| Resolution | 1 kPa (0.01 Bar) |
| Overload | 3.0 Mpa |
| Long-term Stability | ± 0.3% FS/year |

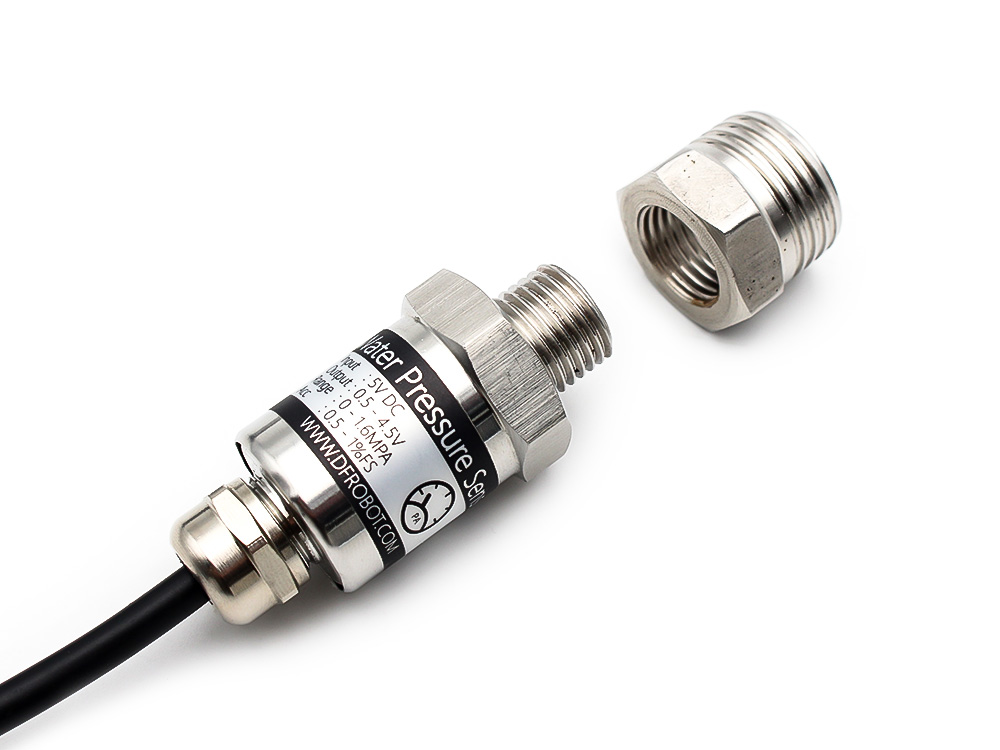

| Process Connection | G1/2 |
| Operating Temperature | -20～85℃ |
| Cycle Life | 10 million times |
Wireless Parameters:
| Communication Protocol | Standard LoRaWAN® protocol V1.0.3 |
| Frequency Band | EU868/US915 |
| MAX Transmit Power | 21dBm |
| Receiver Sensitivity | -137dBm/125kHz SF=12 |
| Network Access/Operating Mode | OTAA Class A |
Physical Parameters:
| Lead Length | 1 meter |
| Power Supply | 1 x 18650 3.7V Lion batteries |
| Operating Temperature | -40°C ~85°C |
| Protection Class | IP68 |
| Dimensions | 131 × 62.7 × 27.5 mm |
| Mounting | Wall Mounting |
AgroSense is a series of Makerfabs wireless LoRaWAN® sensors.
It can cover a transmission range of 2km in urban scenes and 5km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 1 years of usage and an industrial IP68 enclosure. It supports at least -40℃ ~ 85℃ operating temperature and can be deployed in harsh environments. AgroSense is compatible with LoRaWAN® V1.0.3 protocol and can work with LoRaWAN® gateway.

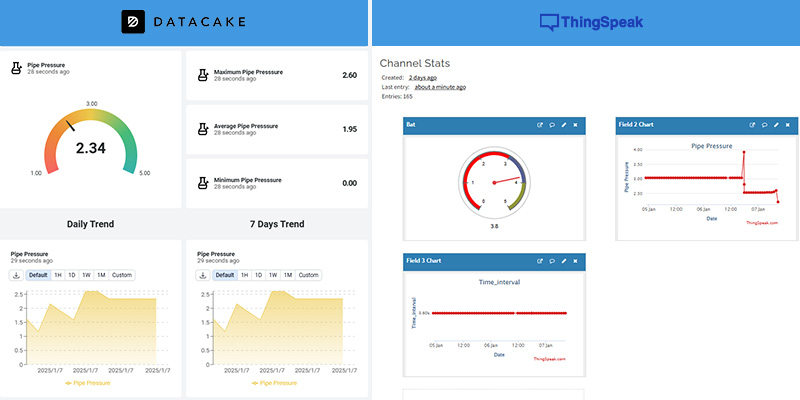

With LoRaWAN® gateway, LoRaWAN® sensor report the result to LoRaWAN® networks, such as The Things Network and DataCake, with simply inputting DEV EUI/ APP EUI/ APP Key:
- DEV EUI: Unique identification of device，authorized by IEEE；
- APP EUI: Unique identification of application；
- APP Key: One of the join network parameters on OTAA mode, calculated by DE EUI；
Part List
AgroSense_Pipe Pressure Sensor LoRaWAN® *1
Usage
For country/ area frequency selecting, please check here: regional Parameter
