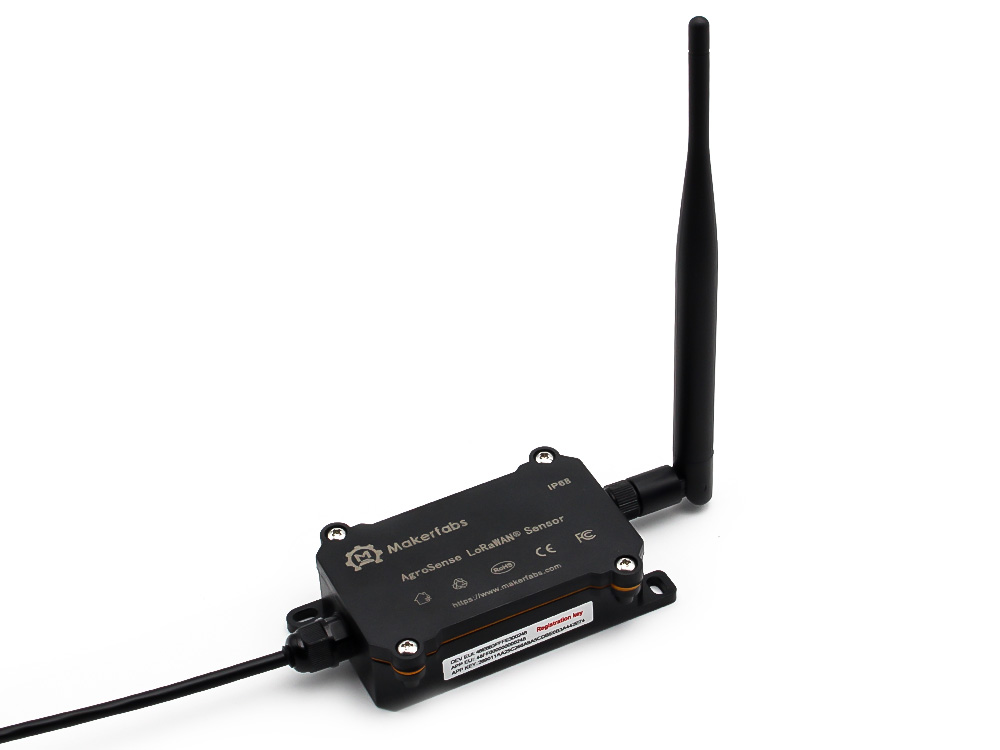

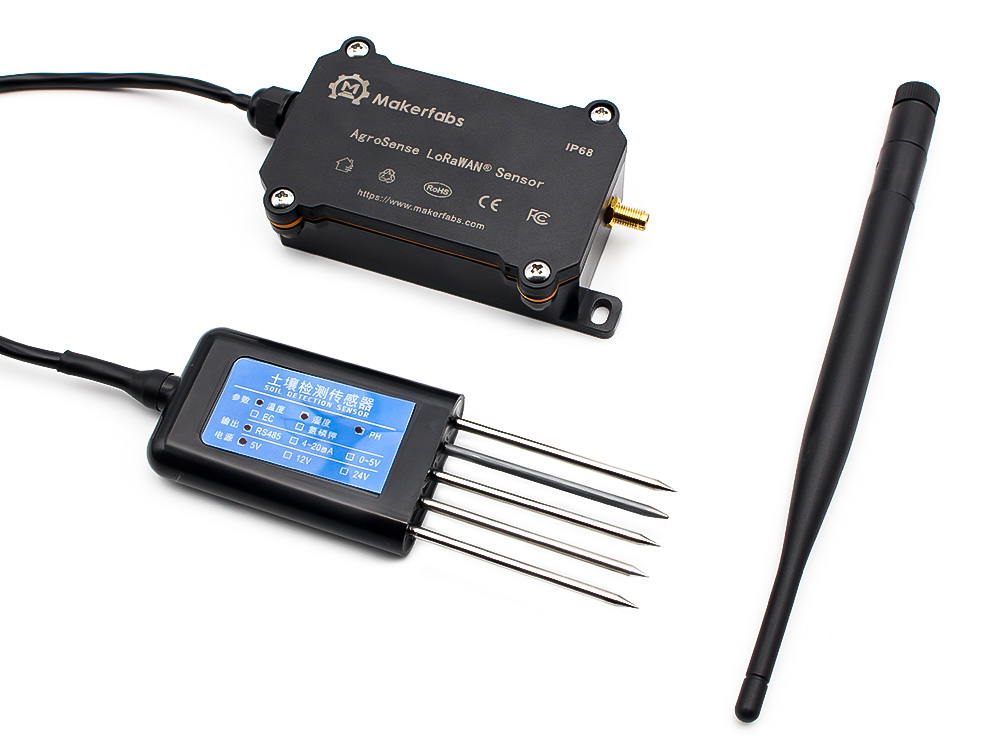

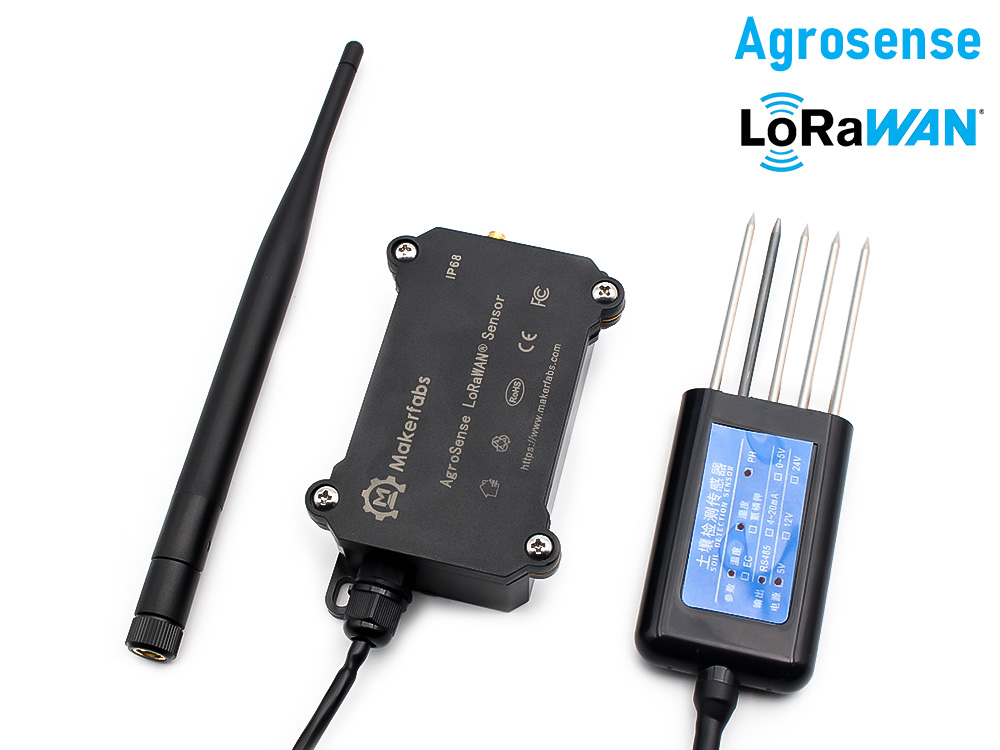

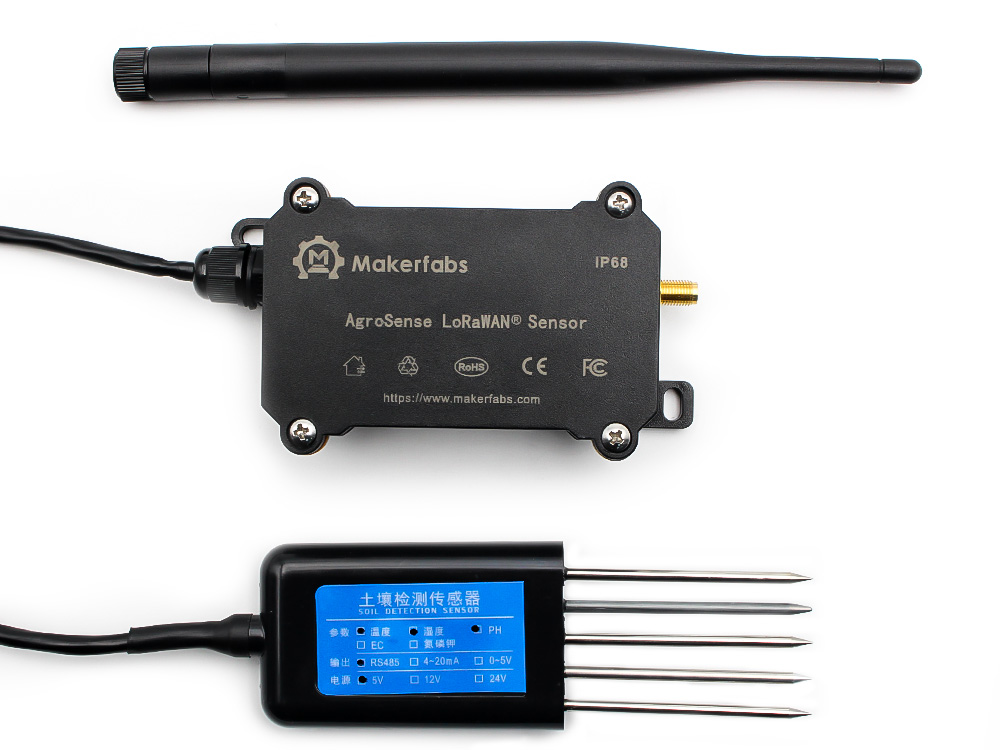

AgroSense_Soil Monitor LoRaWAN®（Humidity/Temperature/PH/EC）

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Code AGLWSM02
Series sensor
Color black
Brand AgroSense
Model EU868/US915
Buy Now
Detail

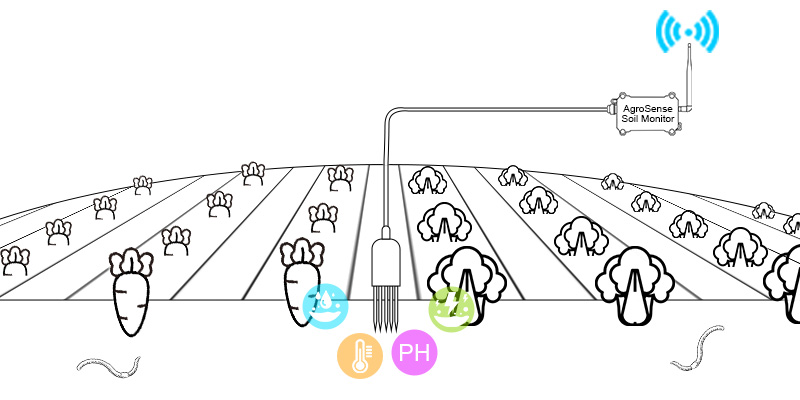

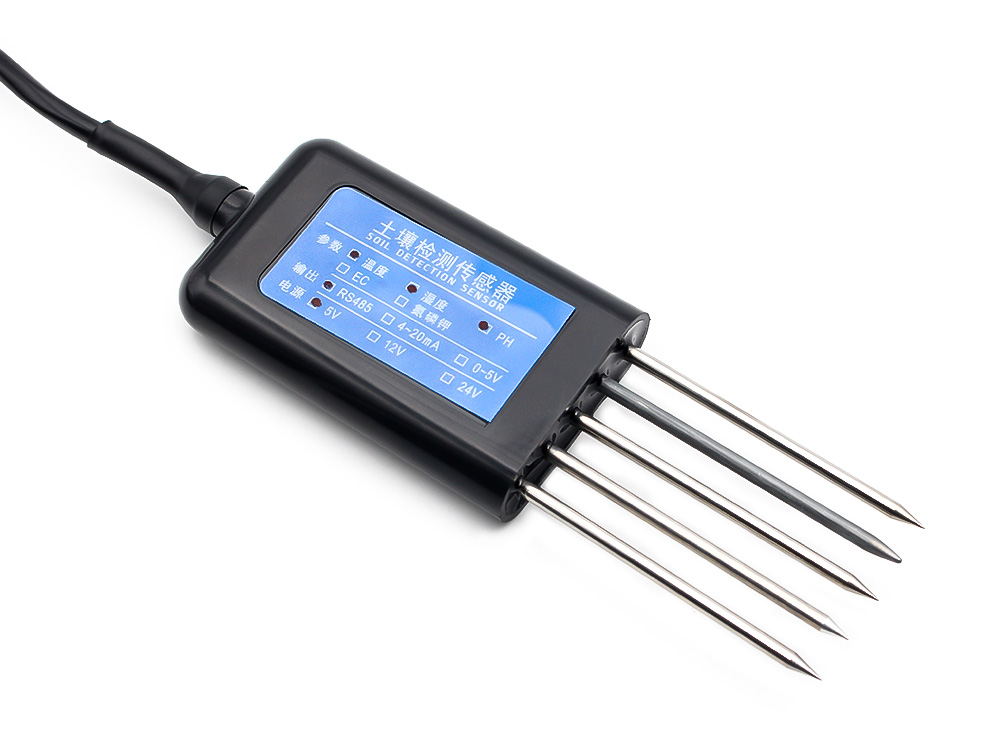

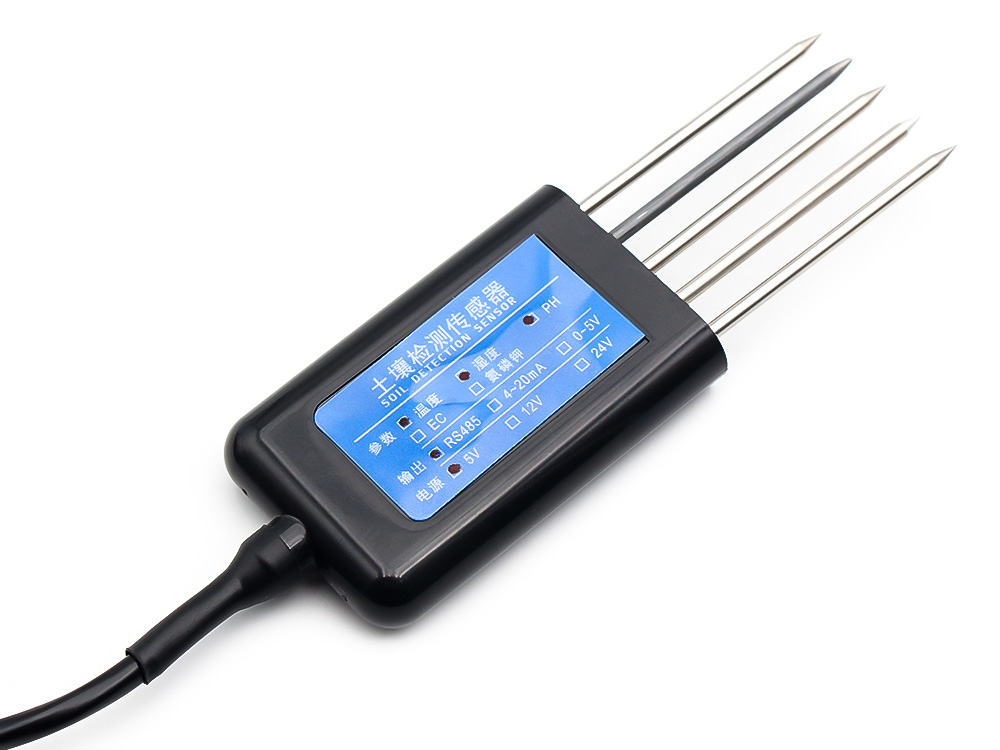

This AgroSense LoRaWAN® soil monitor the key spec of soil, and transmit the result periodically via LoRaWAN to cloud server, for cloud remote monitoring, include :

  • - Soil Temperature

  • - Soil Humidity

  • - EC

  • - PH

This sensor reports the data to TTN/DataCake via LoRaWAN. It also stores max 3K results in internal flash so if LoRaWAN connection temporary not available for some reason It can store the data and resend them as LoRaWAN recover.


This Soil monitor is powered by 18650 lipo battery, with default setting(Soil status reporting every one hour), it can be used more than 9 month for each recharging around.   Users can freely set the reports interval (1 hour by default) via Cloud server data downlink, from 5 minutes to 24 hours.


Benefits from LoRaWAN®, which ensures stability and reliability. It is capable of covering a long transmission range while maintaining low power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of deployment, design and development for end-users that can work via powering it, and setting the configuration in the cloud server.


This product mainly features:

  • - Compatible with Worldwide LoRaWAN®1.0.3 Networks, Support the universal frequency bands EU868/ US915;

  • - Long Range: At least 2km in urban scenes and 5 km in line of sight scenes.

  • - Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP68-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.

  • - Simple to Use: Provides LoRaWAN® DEV EUI/ APP EUI/ APP Key, enable user to finish configuration in few steps.

  • - Support Data downlink for basic sensor setting;

  • - Data storage in case of LoRaWAN Network Lost.

  • - Support ODM: With Makerfabs’ strong ability on design/production, we provide product ODM service, include diff spec sensors/ firmware/software customization.

General Spec:

Product Model AGLWSM02
Temperature Measurement Range -40°C ~80°C
Temperature Measurement Accuracy ±0.5°C
Temperature Resolution 0.1°C
Humidity Measurement Range 0%-100% RH
Humidity Measurement Accuracy ±2%
Humidity Resolution 0.1% RH
EC Measurement Range 0-20000μS/cm
EC Resolution 1μS/cm
PH Measurement Range 3 ~ 9PH
PH Resolution 0.1


Wireless Parameters:

Communication Protocol Standard LoRaWAN® protocol V1.0.3
Network Access/Operating Mode OTAA Class A
MAX Transmit Power 21dBm
Receiver Sensitivity -137dBm/125kHz SF=12
Frequency Band EU868/US915


Physical Parameters:

Power Supply 1 x 18650 3.7V Lion batteries
Operating Temperature -40°C ~85°C
Protection Class IP68
Dimensions 131 × 62.7 × 27.5 mm
Mounting Wall Mounting


AgroSense is a series of Makerfabs wireless LoRaWAN® sensors.


It can cover a transmission range of 2km in urban scenes and 5km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 1 years of usage and an industrial IP68 enclosure. It supports at least -40℃ ~ 85℃ operating temperature and can be deployed in harsh environments. AgroSense is compatible with LoRaWAN® V1.0.3 protocol and can work with LoRaWAN® gateway.


With LoRaWAN® gateway, LoRaWAN® sensor report the result to LoRaWAN® networks, such as The Things Network and DataCake, with simply inputting DEV EUI/ APP EUI/ APP Key:

  • - DEV EUI: Unique identification of device，authorized by IEEE；

  • - APP EUI: Unique identification of application；

  • - APP Key: One of the join network parameters on OTAA mode, calculated by DE EUI；


Part List

  • - AgroSense_Soil Monitor LoRaWAN®（Humidity/Temperature/PH/EC） *1


Usage

For country/ area frequency selecting, please check here: regional Parameter
