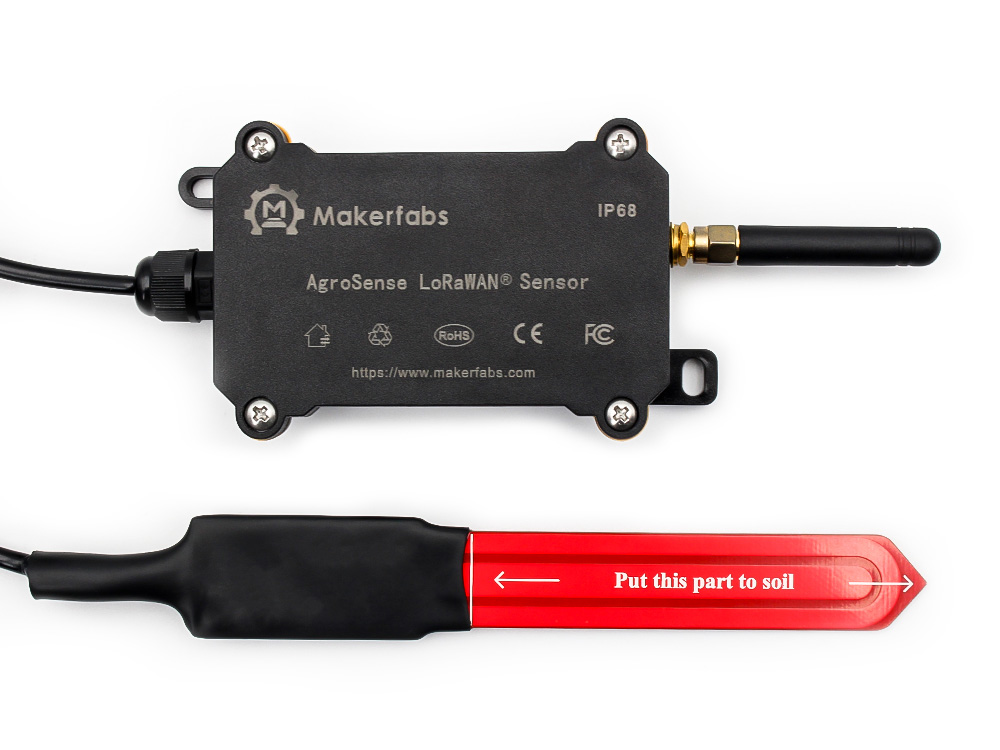

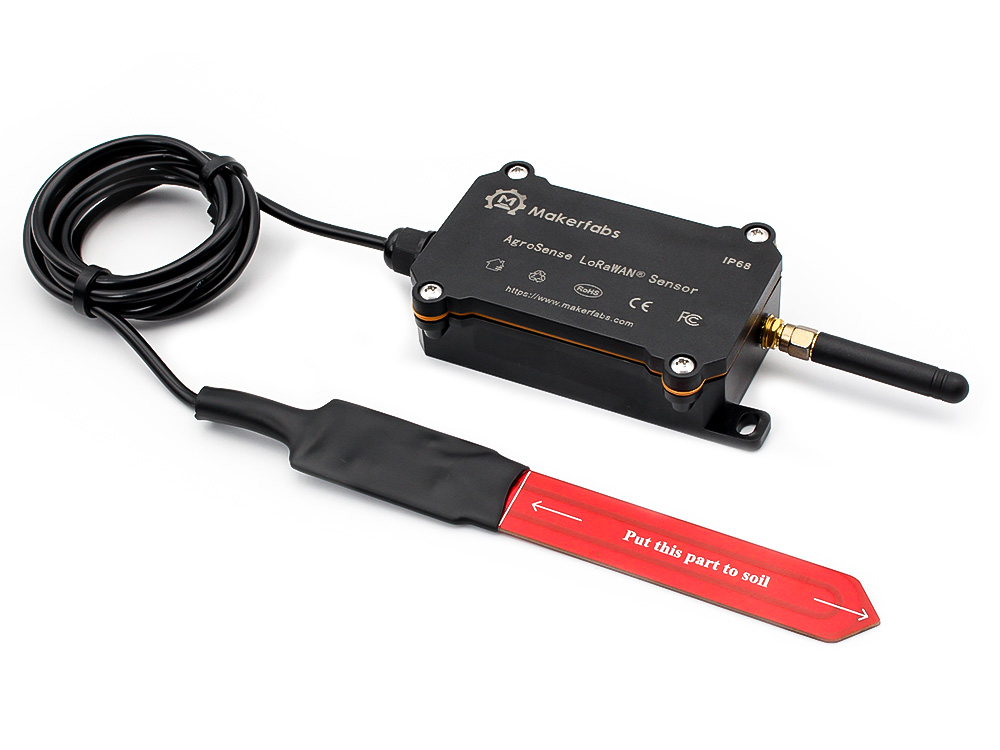

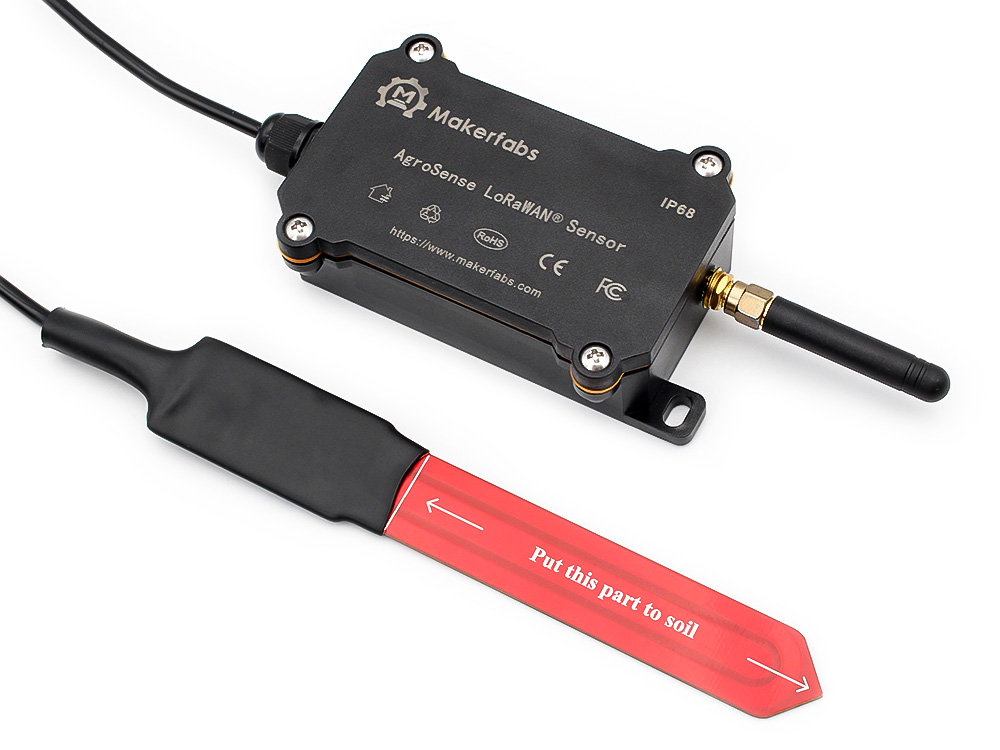

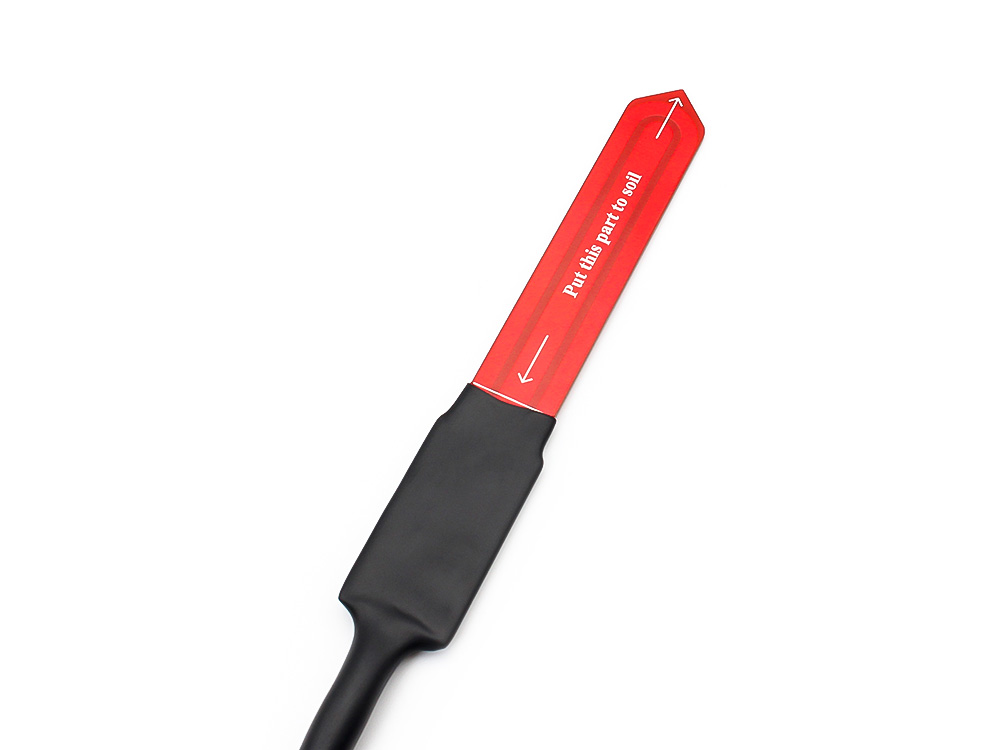

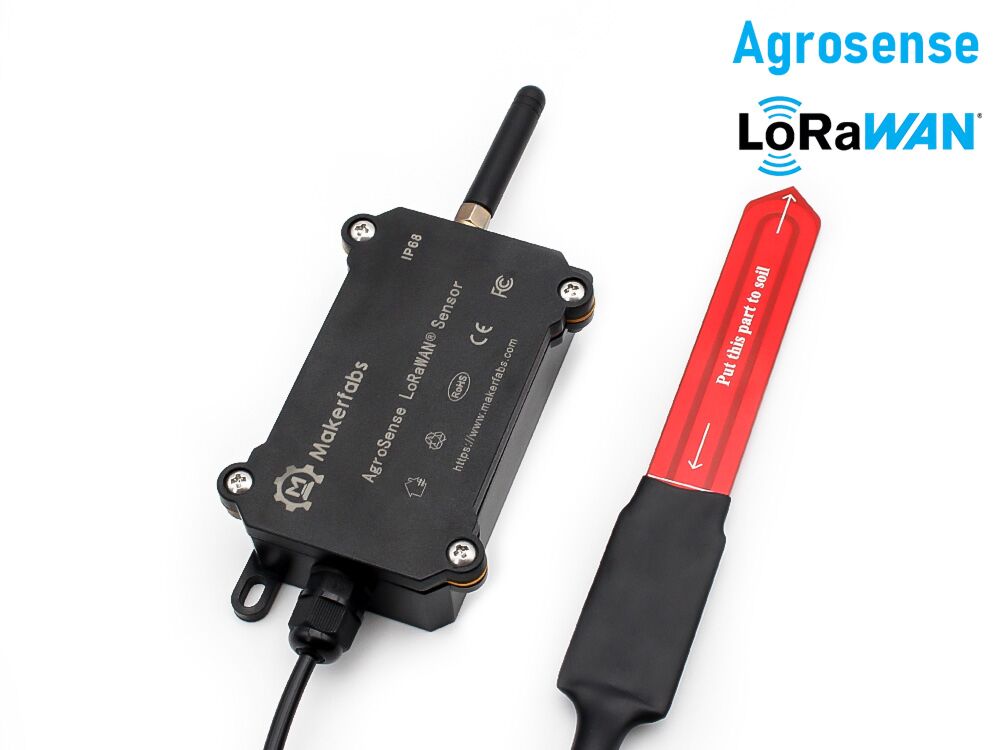

AgroSense_Soil Moisture Sensor LoRaWAN®
AgroSense LoRaWAN® Soil Moisture Sensor measures the Humidity at the range of 12-bit ADC, -40℃ to 85℃with capacitive method ，also with highly waterproof performance tested to IP68, making it widel
y applicable in agricultural environmental sensing scenarios to support the smart agricultural production.
General Parameters
| Product Model | AGLWSM01 |
| Measurement Range | 12-bit ADC |
| Measurement Accuracy | 1/4096 |
Wireless Parameters
| Communication Protocol | Standard LoRaWAN® protocol |
| Network Access/Operating Mode | OTAA Class A |
| MAX Transmit Power | 21dBm |
| Receiver Sensitivity | -137dBm @300bps |
| Frequency Band | EU868/US915 |
Physical Parameters
| Lead Length | 1 .5 meter (custom length available) |
| Power Supply | 2 x AAA 1.5V batteries |
| Operating Temperature | -40°C ~85°C |
| Protection Class | IP68 |

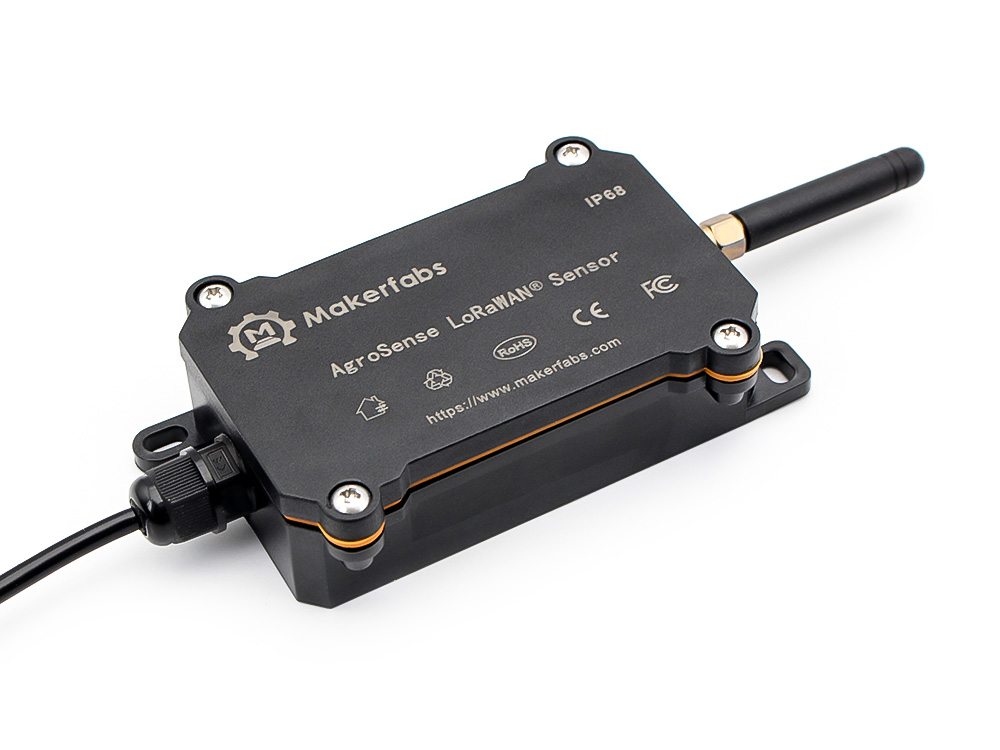

| Dimensions | 131 × 62.7 × 27.5 mm |
| Mounting | Wall Mounting |

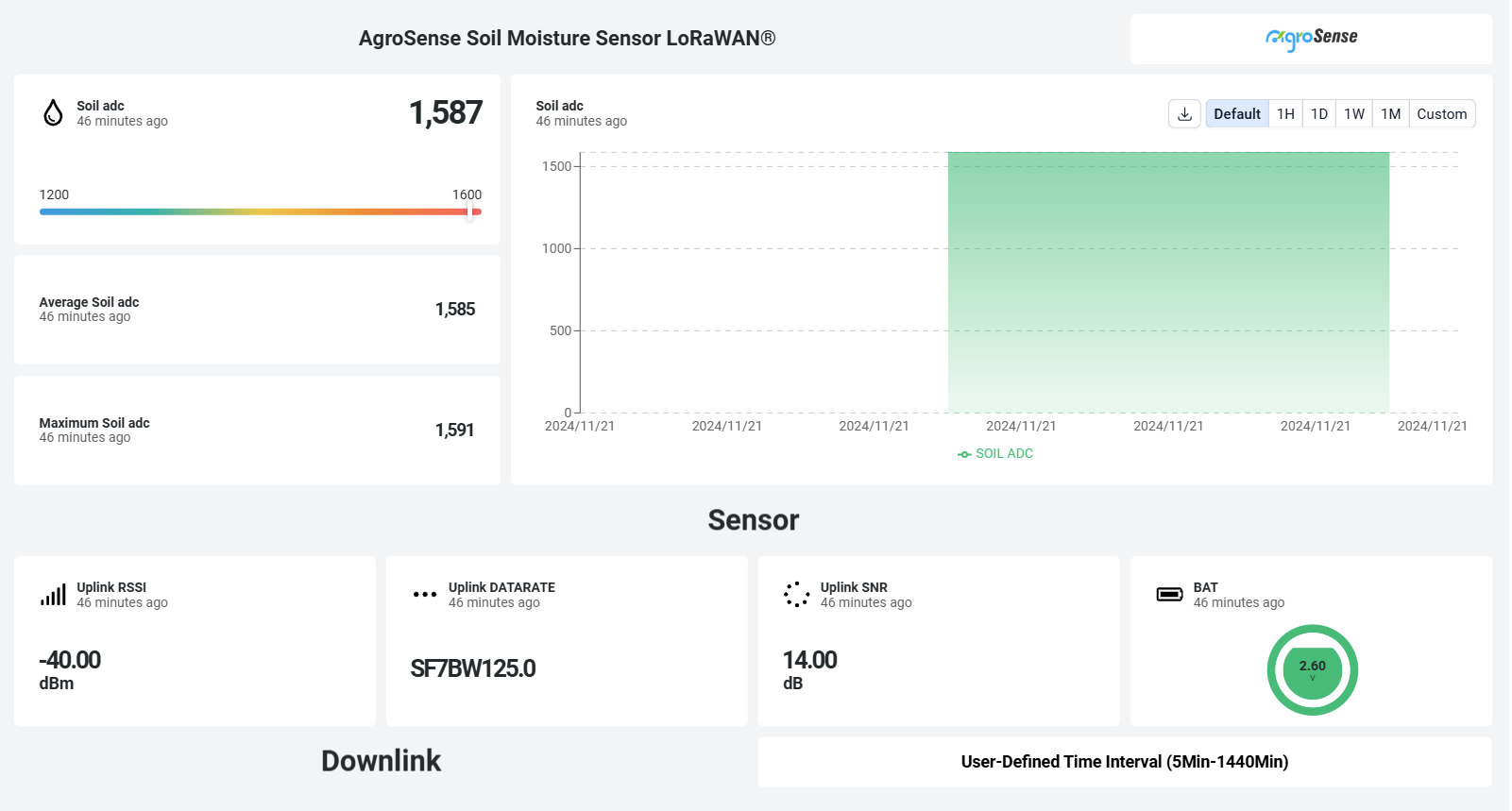

The sensor benefits from LoRaWAN , which ensures stability and reliability. It is capable of covering a long transmission range while maintaining low power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of deployment, design and development for end-users that can work via powering it, and setting the configuration in the cloud server, for LoRaWAN® remote monitoring. It monitors the Soil Moisture and report every 1 hour.
This product mainly features:
- Compatible with Worldwide LoRaWAN®1.0.3 Networks, Support the universal frequency bands EU868/ US915;
- Long Range: At least 2km in urban scenes and 5 km in line of sight scenes.

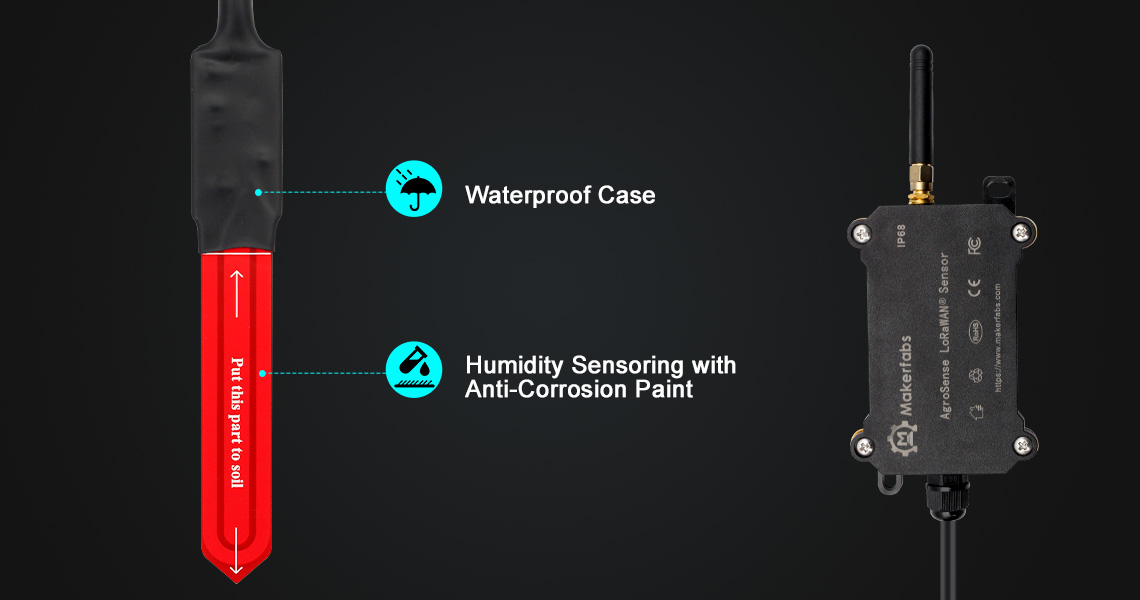

- Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP68-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
- Simple to Use: Provides LoRaWAN® DEV EUI/ APP EUI/ APP Key, enable user to finish configuration in few steps.
- Support LoRaWAN Downlink, to set Transmit Interval Time (60 minutes by default, Minimum 5 Minutes , 24 hours Max)

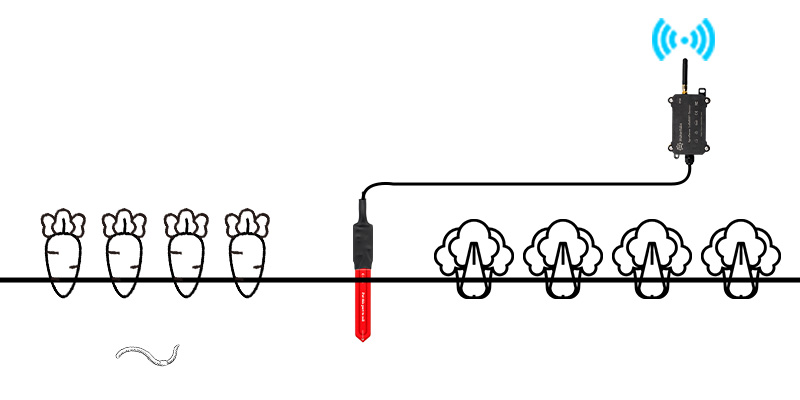

- Cost-effective: With Makerfabs’ strong ability on production, we make this product cost-effective to users, the cost of our product is approximately half that of similar products currently available on the market, suitable for mass implement in field applications such as farm/greenhouse, etc.
Description
AgroSense is a series of Makerfabs wireless LoRaWAN® sensors.
It can cover a transmission range of 2km in urban scenes and 5km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 1 years of usage and an industrial IP68 enclosure. It supports -40 ~ 85℃ operating temperature and can be deployed in harsh environments. AgroSense is compatible with LoRaWAN® V1.0.3 protocol and can work with LoRaWAN® gateway.
Note that all agrosense Products are based LoRaWAN tech, that need to work with a LoRaWAN Gateway, We suggest this Sensecap M2

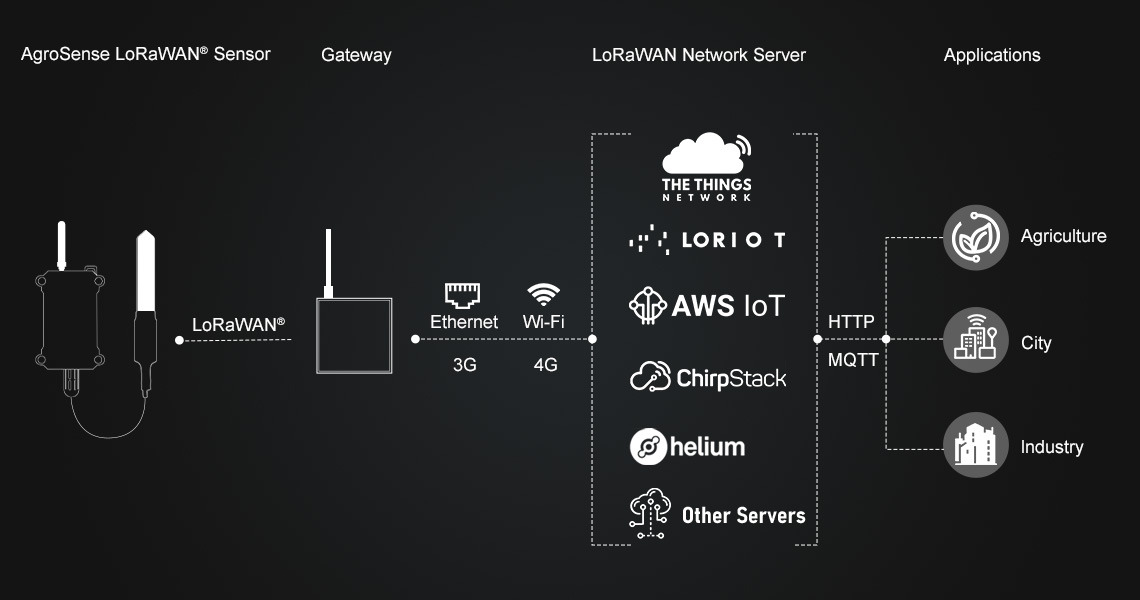

With LoRaWAN® gateway, LoRaWAN® sensor report the result to LoRaWAN® networks, such as The Things Network, with simply inputting DEV EUI/ APP EUI/ APP Key:
- DEV EUI: Unique identification of device，authorized by IEEE；
- APP EUI: Unique identification of application；
- APP Key: One of the join network parameters on OTAA mode, calculated by DEVEUI；
Part List
Agrosense_Soil Moisture Sensor *1
Usage
For country/ area frequency selecting,please check here: regional Parameter
