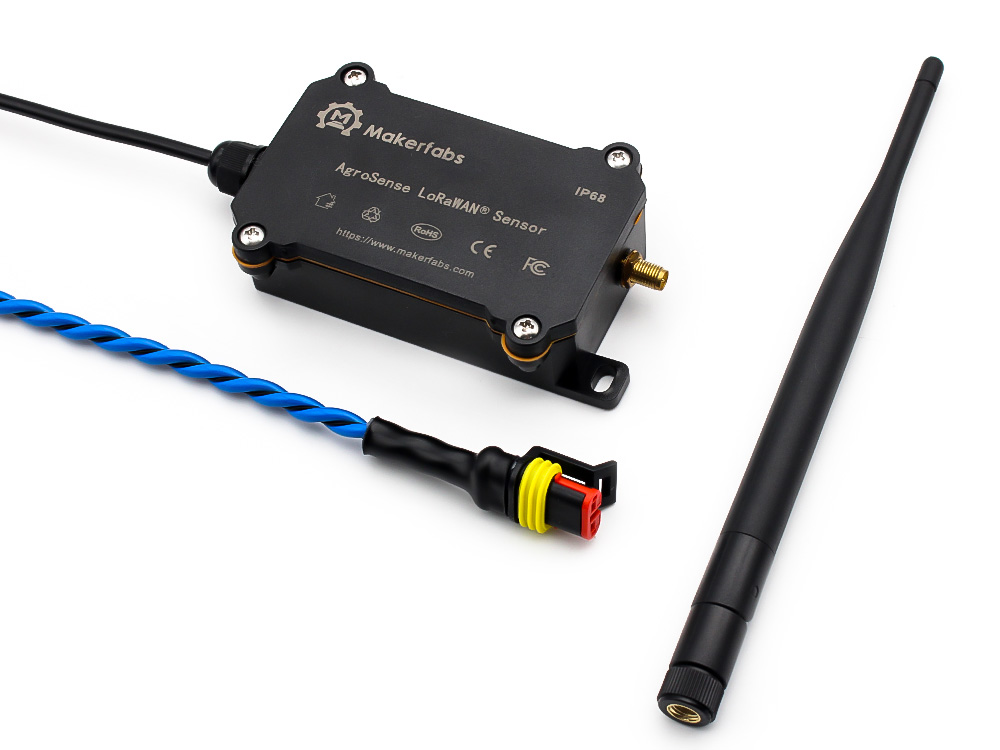

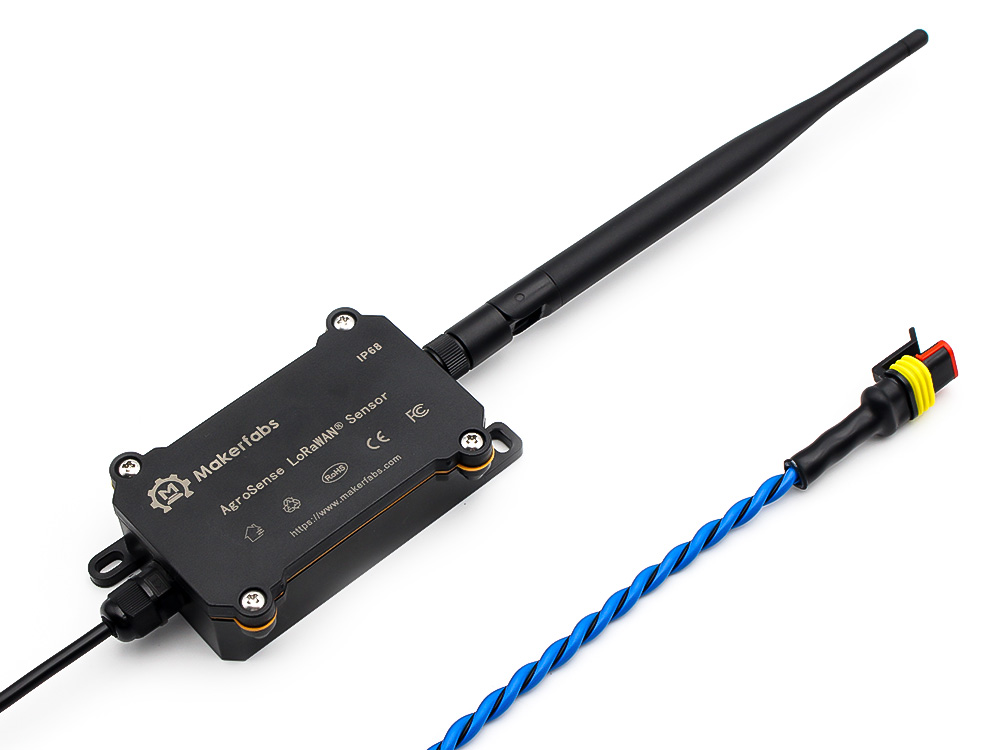

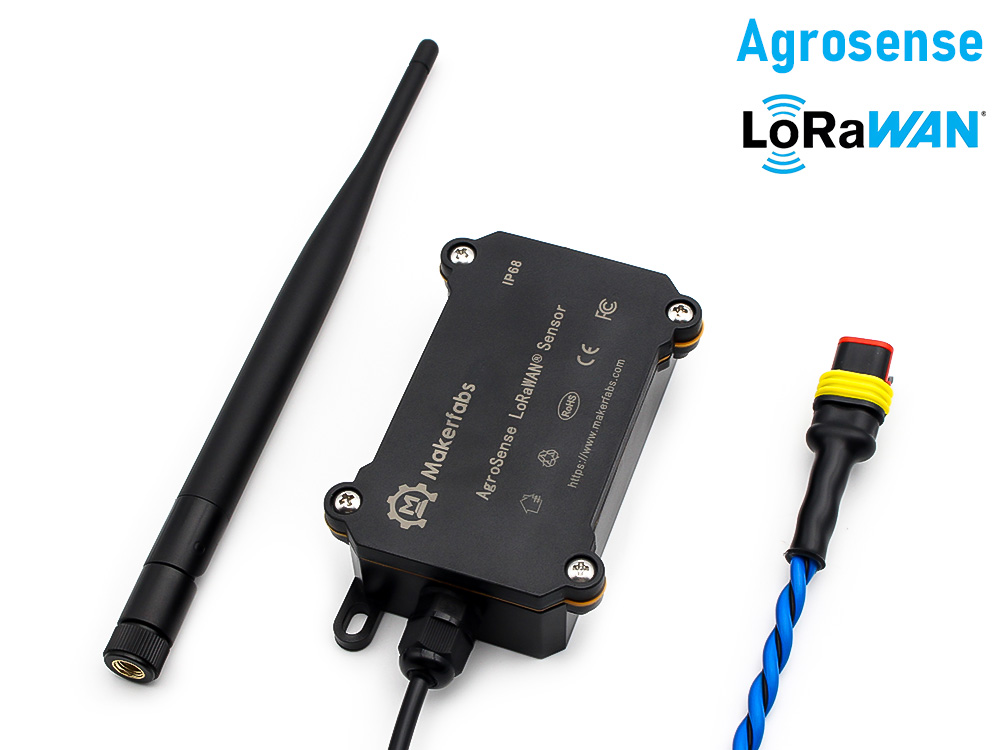

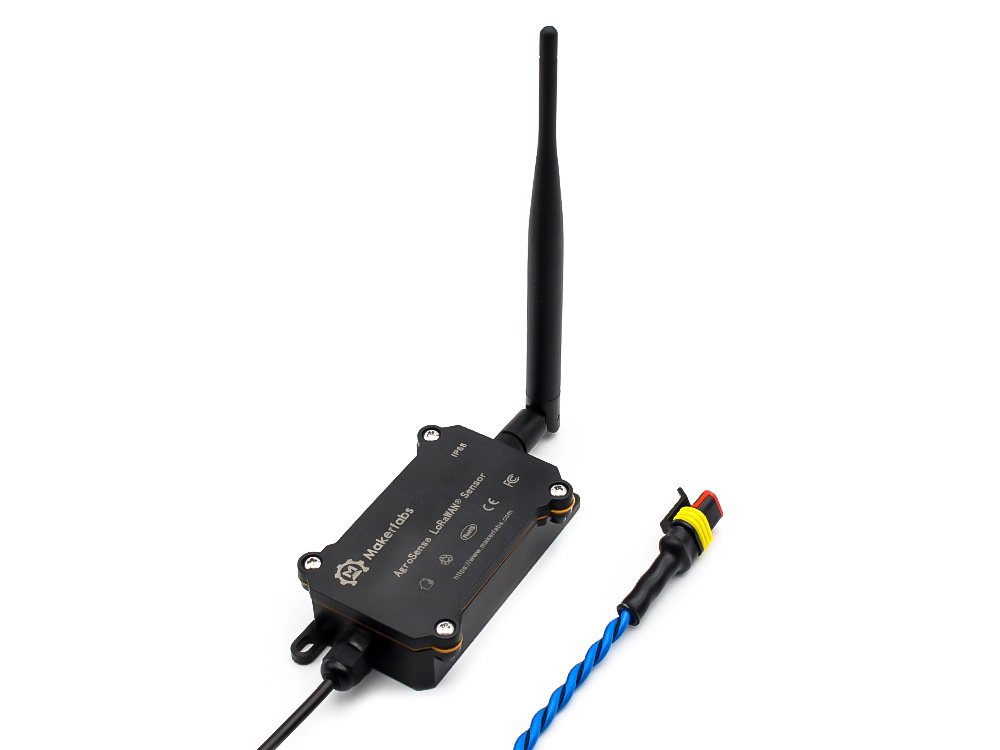

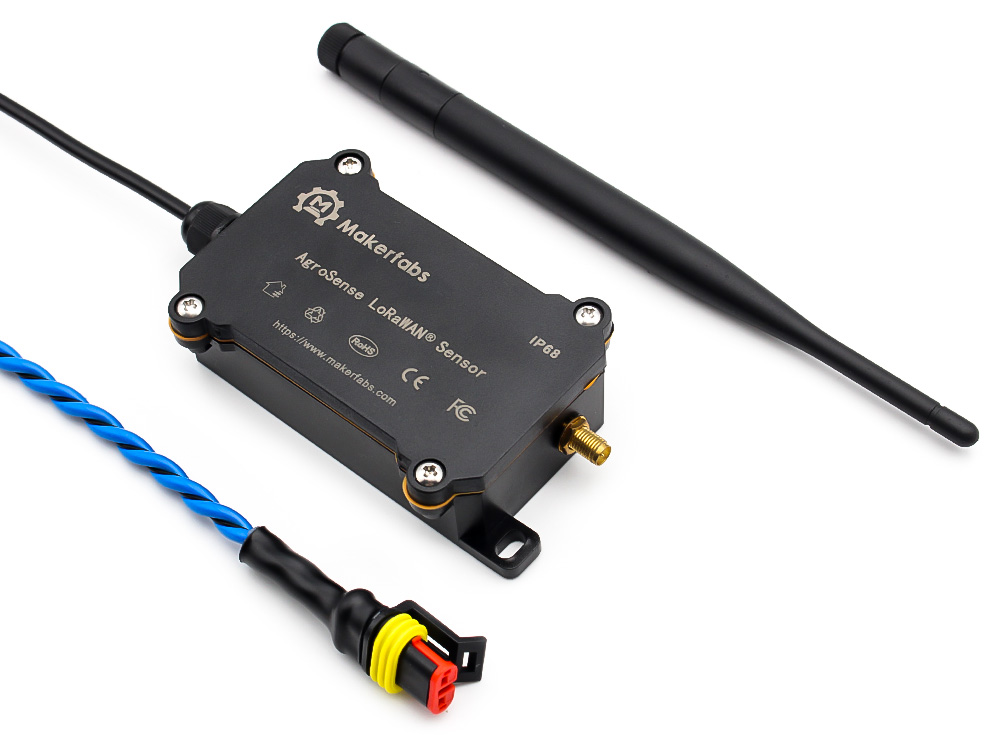

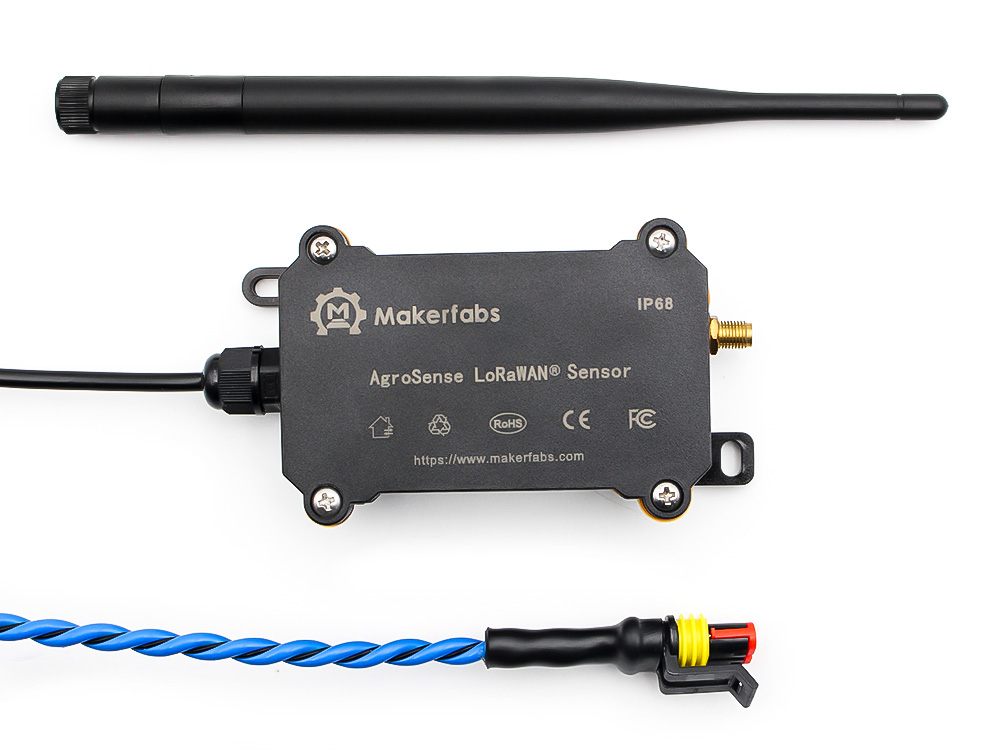

AgroSense_None-Position Rope Type Water Leak Sensor LoRaWAN®

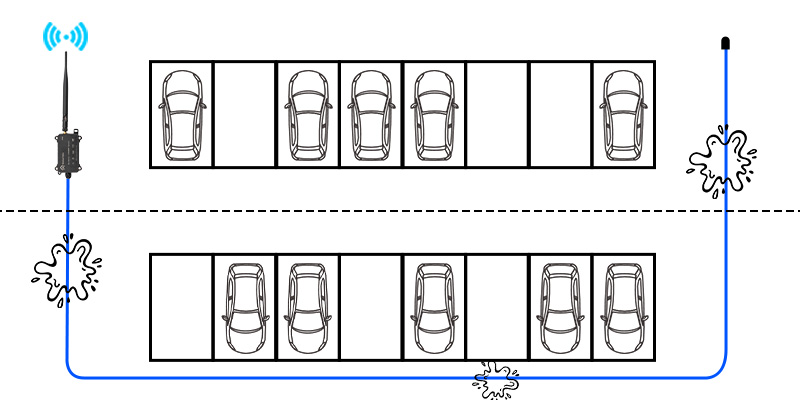

The AgroSense LoRaWAN® None-Position Rope Type Water Leak Sensor detects water/oil leakage/drops for the whole sensor cable, it is sensitivity when there is water drop over the leak cable at any place, it indicates& reports water drop via LoRaWAN® instantly, suitable for applications such as garage/kitchen water leakage detection.
Benefits from LoRaWAN®, which ensures stability and reliability. It is capable of covering a long transmission range while maintaining low power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of deployment, design and development for end-users that can work via powering it, and setting the configuration in the cloud server.
This product mainly features:
- Compatible with Worldwide LoRaWAN®1.0.3 Networks, Support the universal frequency bands EU868/ US915;
- Long Range: At least 2km in urban scenes and 5 km in line of sight scenes.
- Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP68-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
- Simple to Use: Provides LoRaWAN® DEV EUI/ APP EUI/ APP Key, enable user to finish configuration in few steps.
- Cost-effective: With Makerfabs’ strong ability on production, we make this product cost-effective to users, the cost of our product is approximately half that of similar products currently available on the market, suitable for mass implement in field applications such as farm/greenhouse, etc.
General Spec:
| Product Model | AGLWNPW01 |
| Detection types | Various liquids such as water, oil, etc. |
| Detection modes | Range detection |
Wireless Parameters:
| Communication Protocol | Standard LoRaWAN® protocol 1.0.3 |
| Network Access/Operating Mode | OTAA Class A |
| MAX Transmit Power | 21dBm |
| Receiver Sensitivity | -137dBm/125kHz SF=12 |
| Frequency Band | EU868/US915 |
Physical Parameters:

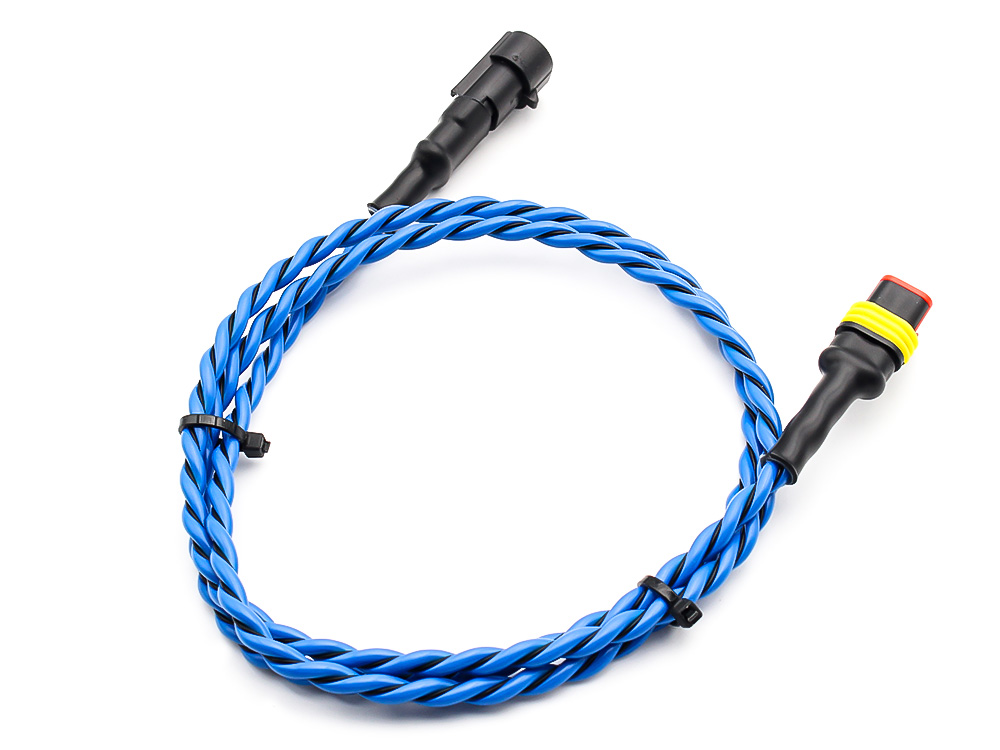

| Sensor cable Length/Range | 2.0m(support customizing) |
| Power Supply | 2 x AAA 1.5V batteries |
| Operating Temperature | -40°C ~85°C |
| Protection Class | IP68 |
| Dimensions | 131 × 62.7 × 27.5 mm |
| Mounting | Wall Mounting |
AgroSense is a series of Makerfabs wireless LoRaWAN® sensors.
It can cover a transmission range of 2km in urban scenes and 5km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 1 years of usage and an industrial IP68 enclosure. It supports at least -40℃ ~ 85℃ operating temperature and can be deployed in harsh environments. AgroSense is compatible with LoRaWAN® V1.0.3 protocol and can work with LoRaWAN® gateway.
With LoRaWAN® gateway, LoRaWAN® sensor report the result to LoRaWAN® networks, such as The Things Network and DataCake, with simply inputting DEV EUI/ APP EUI/ APP Key:
- DEV EUI: Unique identification of device，authorized by IEEE；
- APP EUI: Unique identification of application；
- APP Key: One of the join network parameters on OTAA mode, calculated by DEVEUI；
Part List
AgroSense_None-Position Rope Type Water Leak Sensor LoRaWAN® *1
Usage
For country/ area frequency selecting,please check here: regional Parameter
