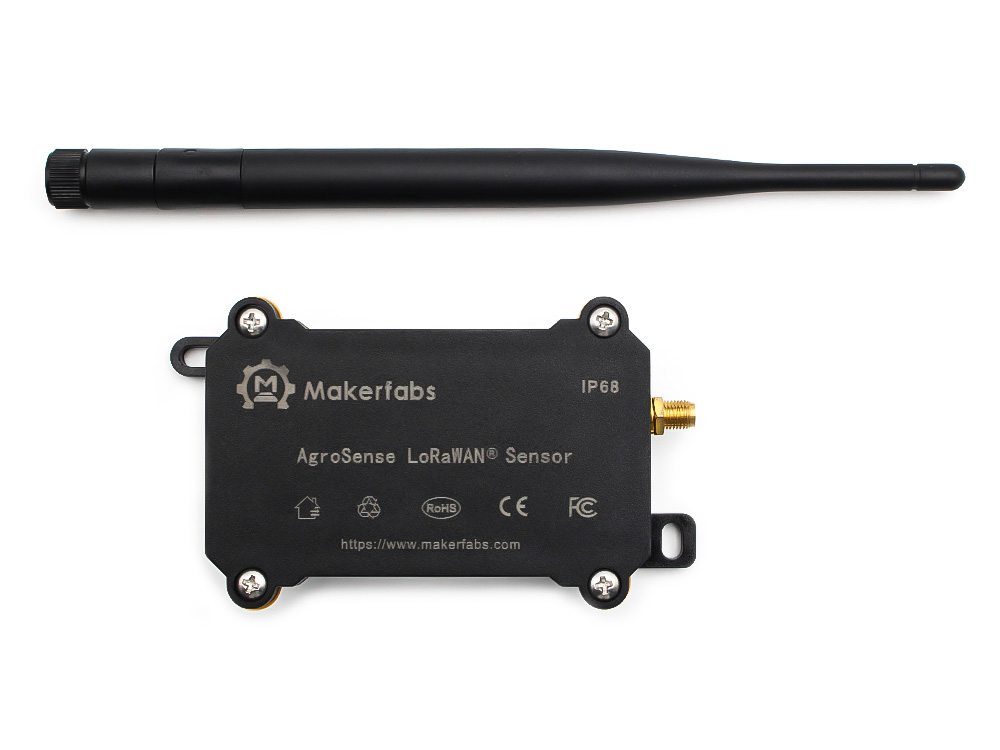

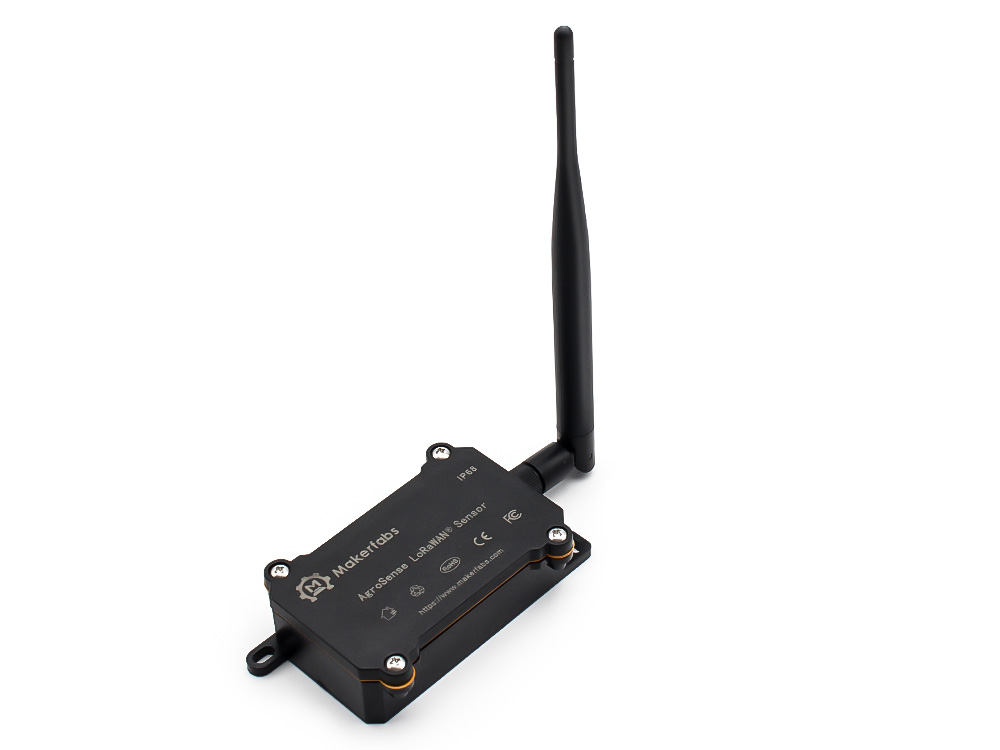

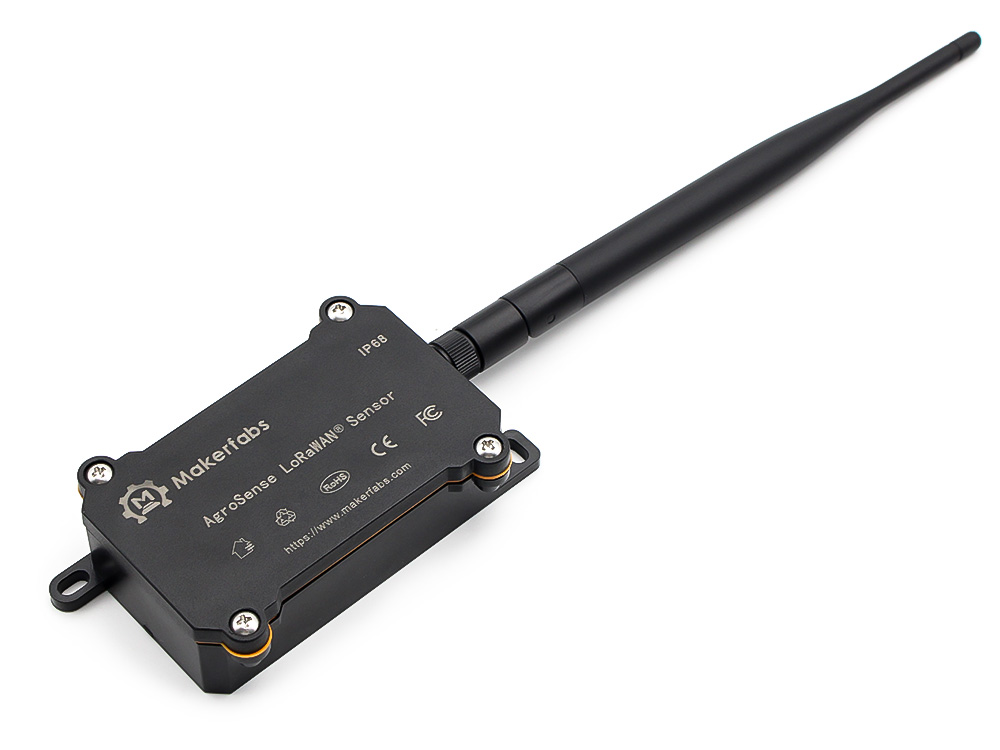

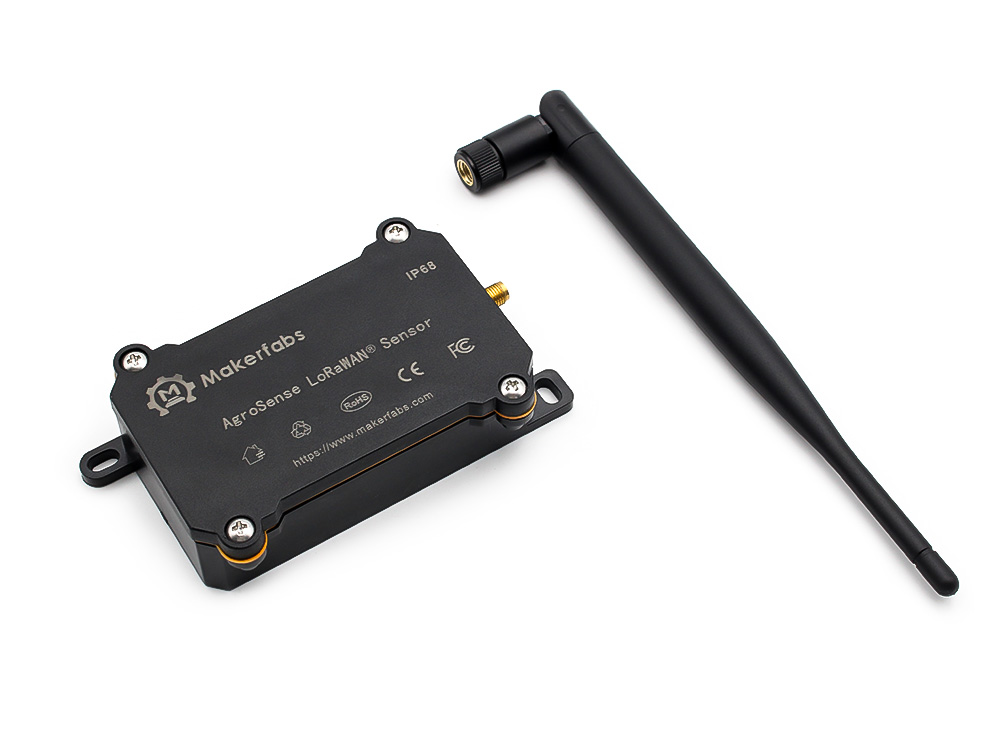

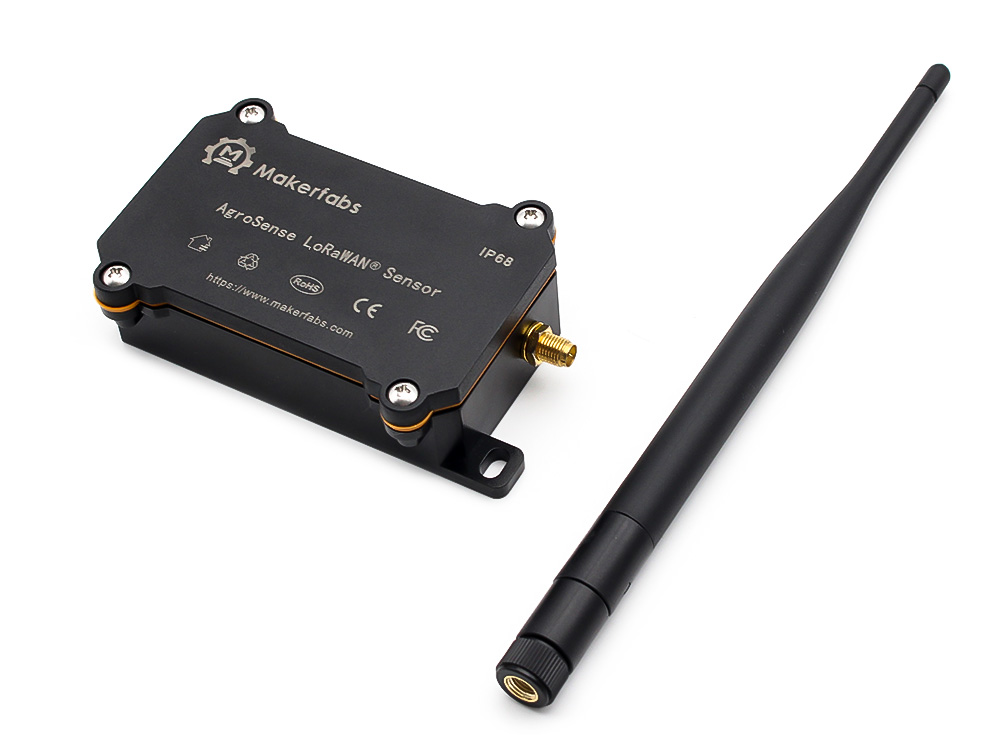

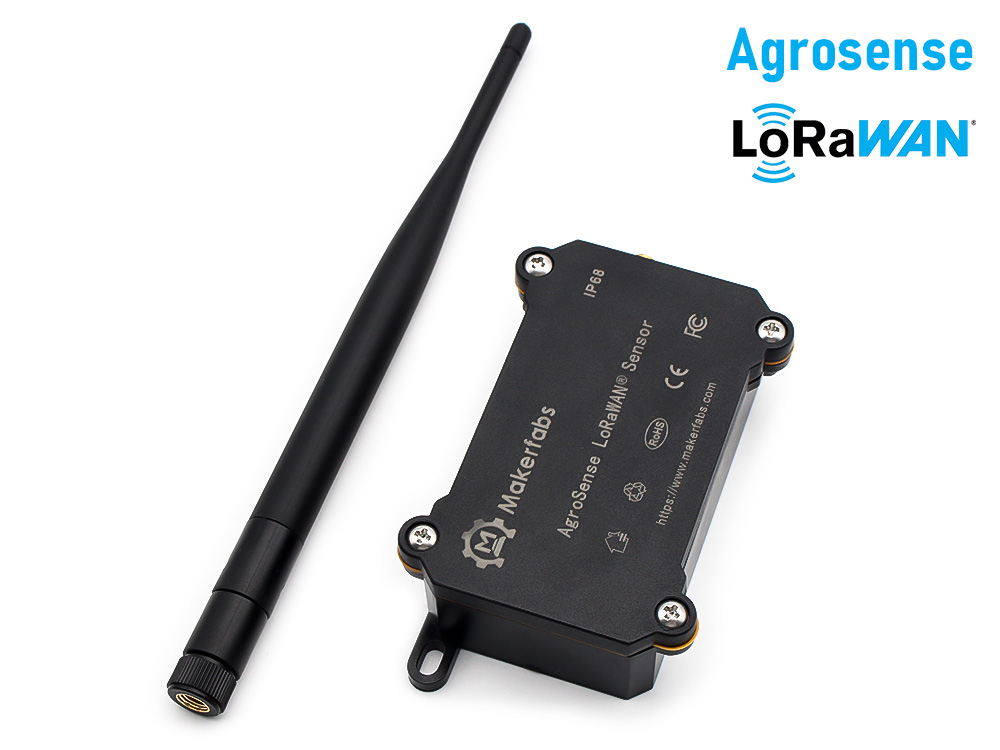

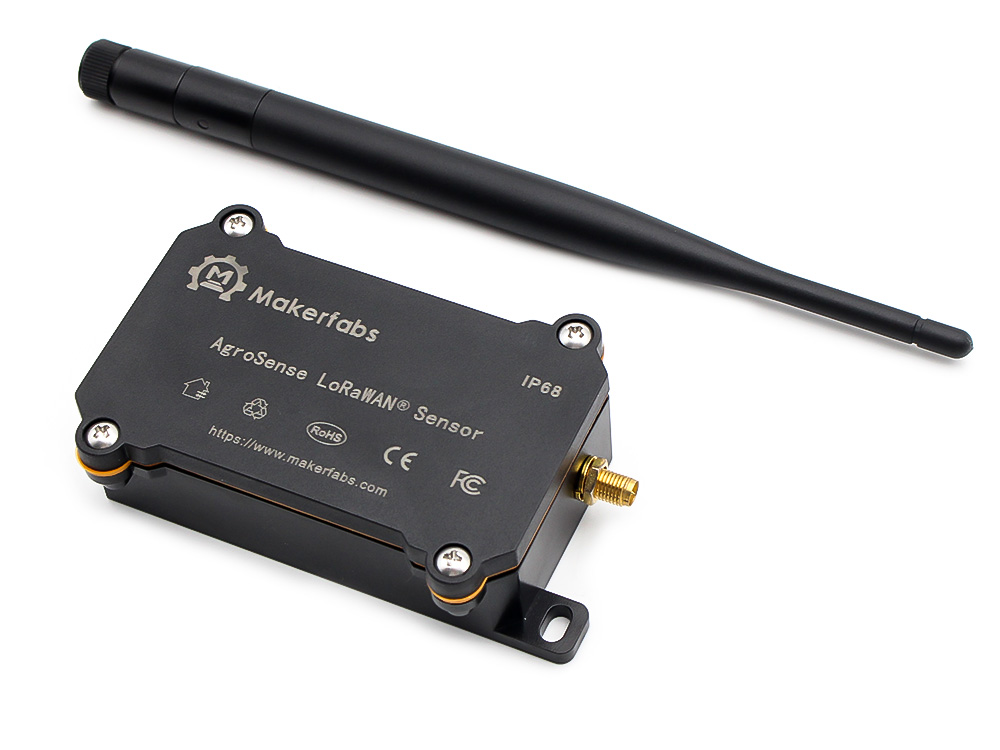

AgroSense_GPS Tracker NEO_6M LoRaWAN®
The AgroSense LoRaWAN® GPS Tracker NEO_6M is an ideal GPS beacon for geolocation of equipment, it reports GPS location every 1 hour( by default, can be set from min 5 minute to max 24 hours). U-blox NEO-6M GPS module is used in this product, it is a widely used GPS module which features high precision. With onboard accelerometer LIS3DHTR, it detects vibration and reports via LoRaWAN, suitable for kinds of applications such as asset tracking, farm management.
This module uses re-chargeable 18650 lipo battery, with our detailed hardware/software design, the working time can be 16 months (per the default setting) for each battery charge circle.
This product mainly features:
- Compatible with Worldwide LoRaWAN®1.0.3 Networks, Support the universal frequency bands EU868/ US915;
- Long Range: At least 2km in urban scenes and 5 km in line of sight scenes.
- Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP68-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
- Simple to Use: Provides LoRaWAN® DEV EUI/ APP EUI/ APP Key, enable user to finish configuration in few steps.
- Cost-effective: With Makerfabs’ strong ability on production, we make this product cost-effective to users, the cost of our product is approximately half that of similar products currently available on the market, suitable for mass implement in field applications such as farm/greenhouse, etc.
- Support LoRaWAN Downlink, to set GPS Transmit Interval Time (60 minutes by default, Minimum 5 Minutes , 24 hours Max); set/close vibration event reporting threshold;
GNSS：
| Product Model | AGLWGT02 |
| Positioning system | GPS，SBAS |
| Positioning parameters | longitude：resolution of 0.0001 |
| latitude：resolution of 0.0001 | |
| altitude：resolution of 1 meter | |
| Positioning accuracy | GPS: 2.5 meters |
| SBAS: 2.0 meters | |
| 2D horizontal position accuracy < 1 meter | |
| 3D horizontal position accuracy < 2 meters |
Wireless Parameters:
| Communication Protocol | Standard LoRaWAN® protocol 1.0.3 |
| Network Access/Operating Mode | OTAA Class A |
| MAX Transmit Power | 21dBm |
| Receiver Sensitivity | -137dBm/125kHz SF=12 |
| Frequency Band | EU868/US915 |
Physical Parameters:
| Power Supply | 1 x 18650 3.7V Lion batteries |
| Operating Temperature | -40°C ~85°C |
| Protection Class | IP68 |
| Mounting | Wall Mounting |
| Dimensions | 131 × 62.7 × 27.5 mm |
AgroSense is a series of Makerfabs wireless LoRaWAN® sensors.
It can cover a transmission range of 2km in urban scenes and 5km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 1 years of usage and an industrial IP68 enclosure. It supports at least -40℃ ~ 85℃ operating temperature and can be deployed in harsh environments. AgroSense is compatible with LoRaWAN® V1.0.3 protocol and can work with LoRaWAN® gateway.
With LoRaWAN® gateway, LoRaWAN® sensor report the result to LoRaWAN® networks, such as The Things Network and DataCake, with simply inputting DEV EUI/ APP EUI/ APP Key:
- DEV EUI: Unique identification of device，authorized by IEEE；
- APP EUI: Unique identification of application；
- APP Key: One of the join network parameters on OTAA mode, calculated by DE EUI；
Part List
AgroSense_GPS Tracker NEO_6M LoRaWAN® *1;
Usage
For country/ area frequency selecting,please check here: regional Parameter
