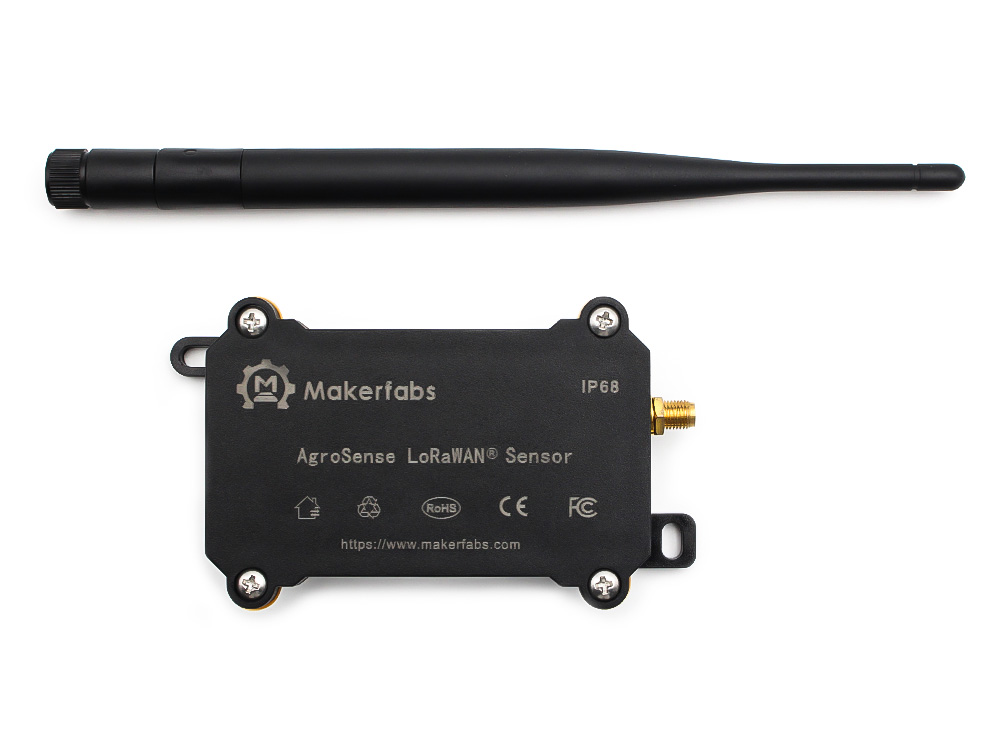

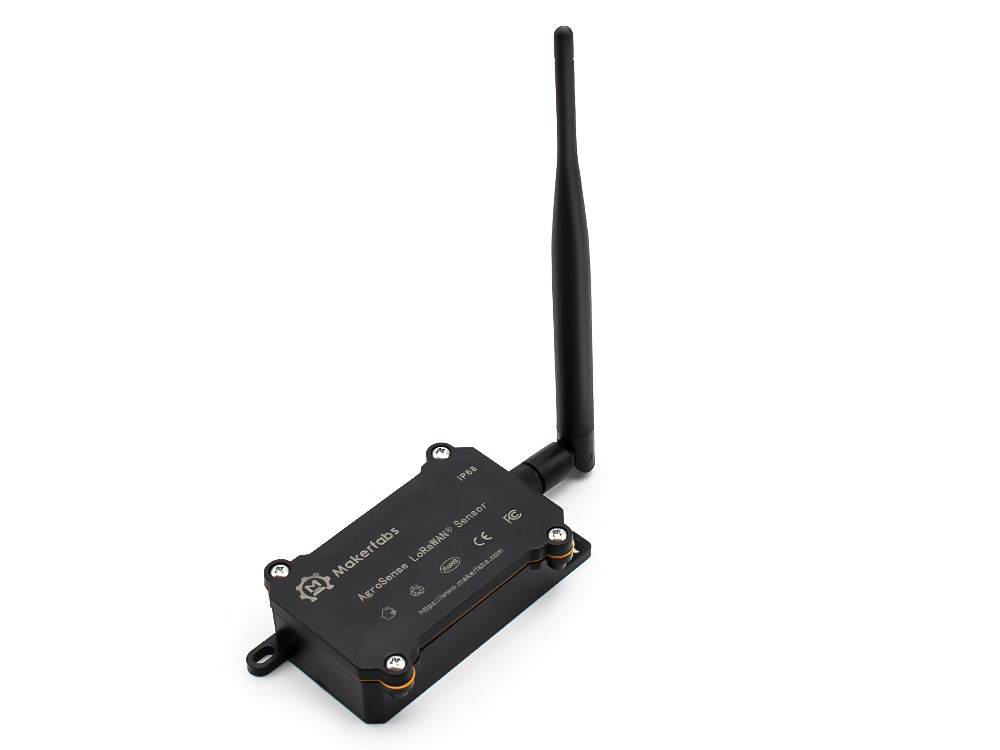

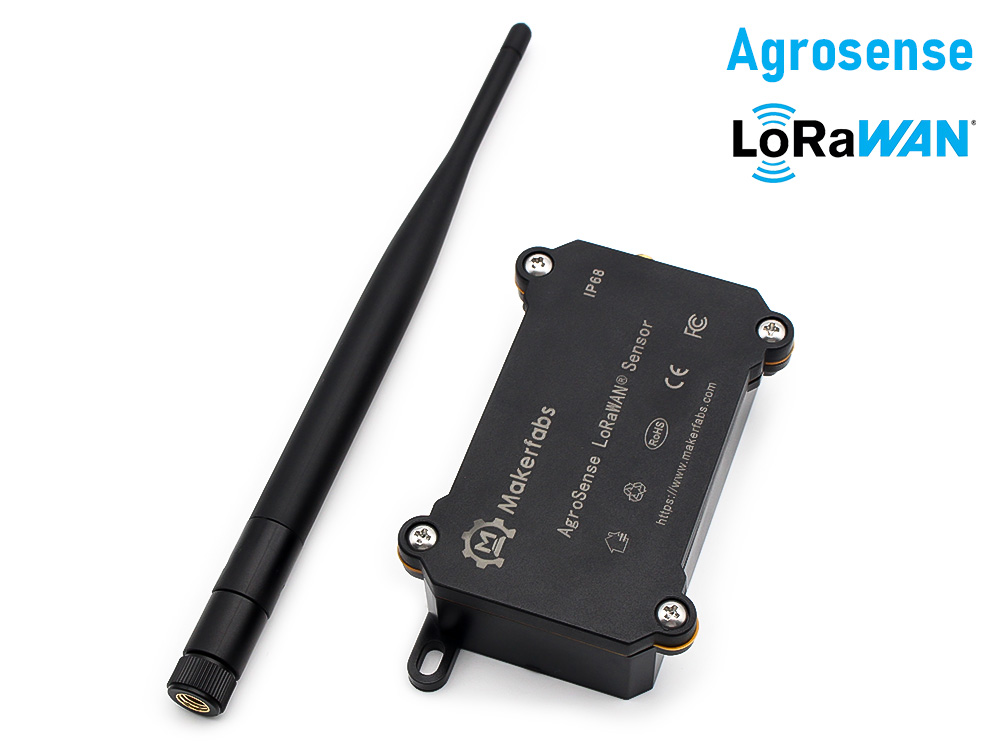

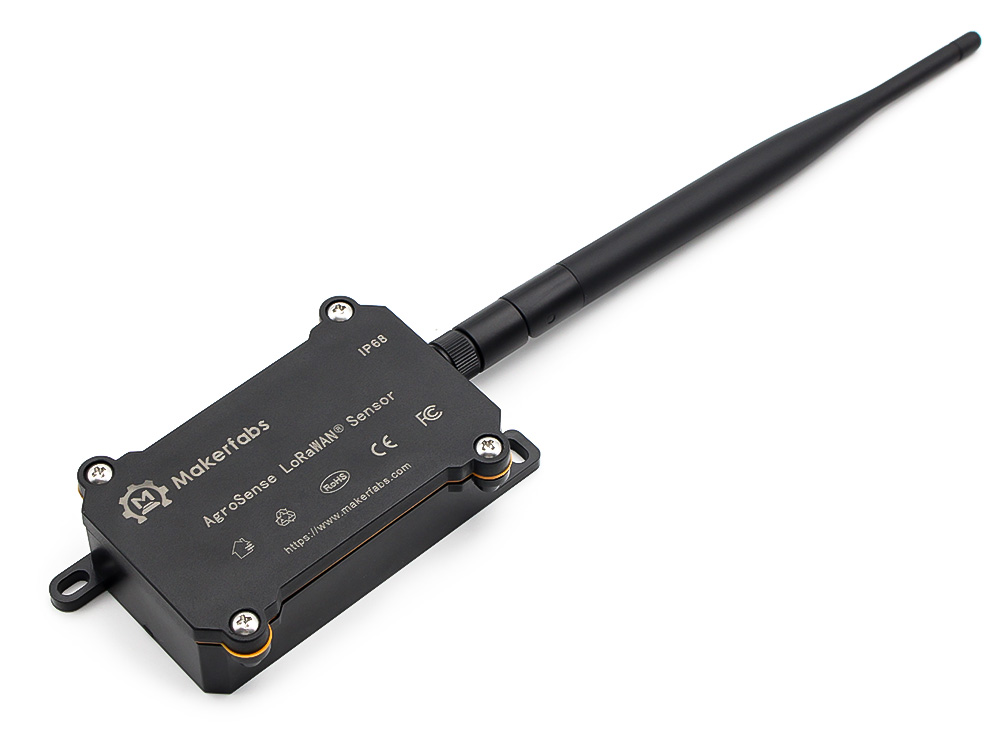

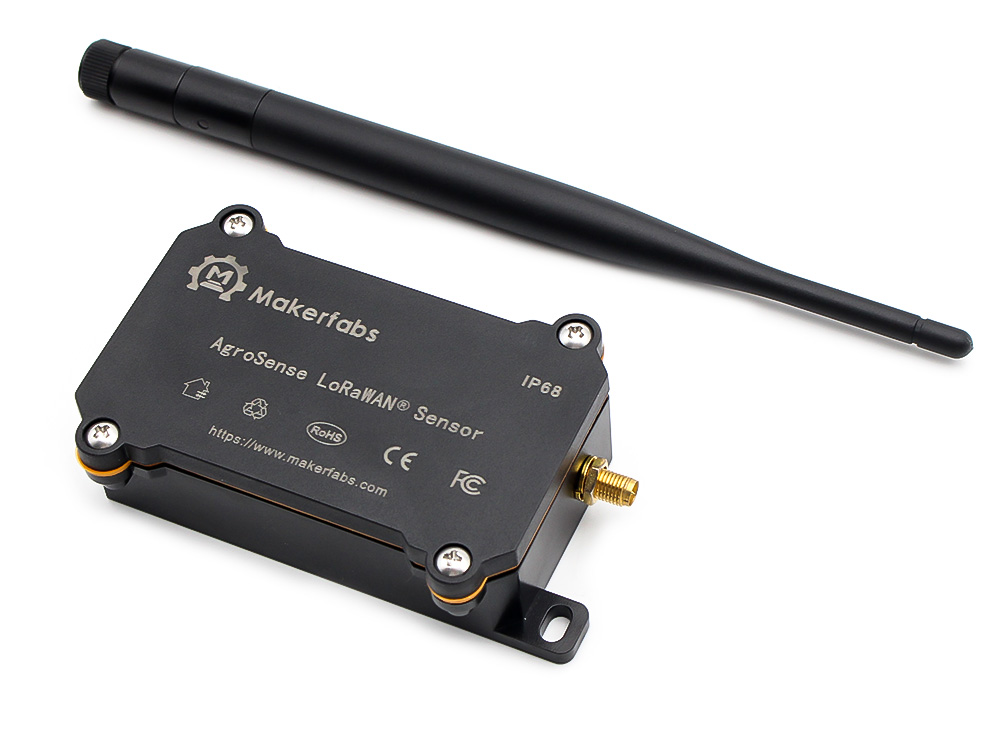

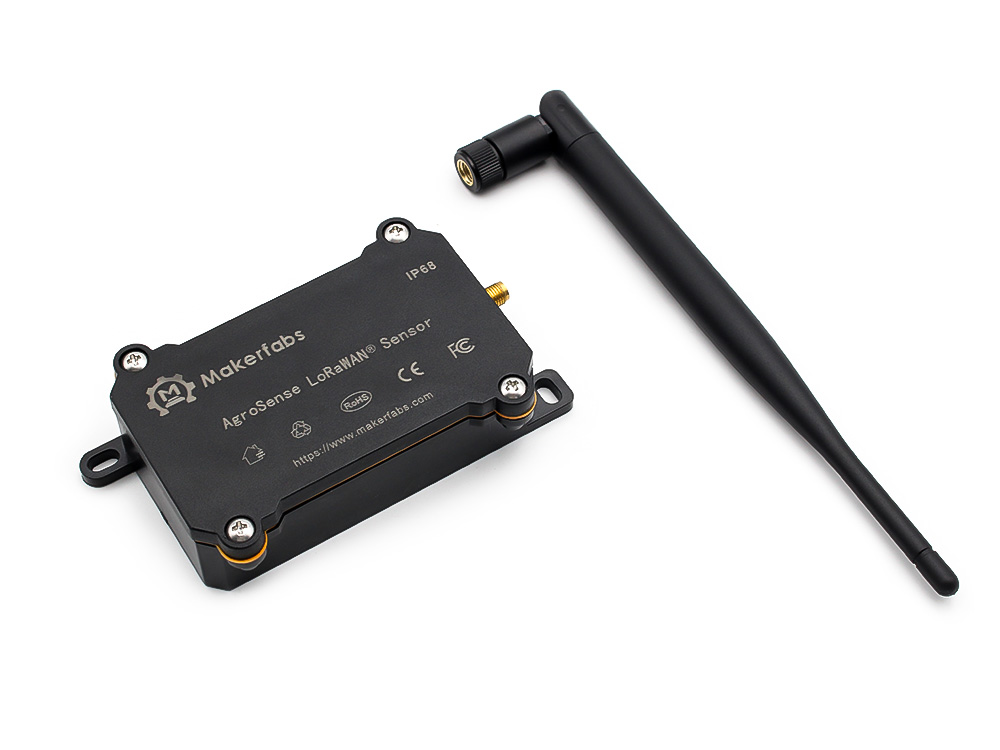

AgroSense_GPS Tracker_PA1010D LoRaWAN®

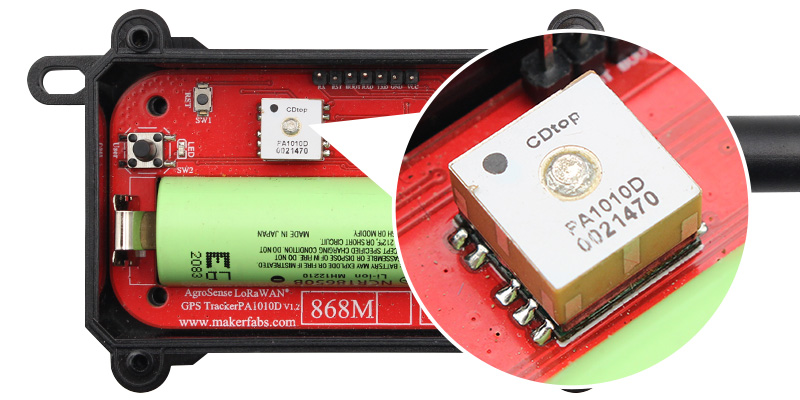

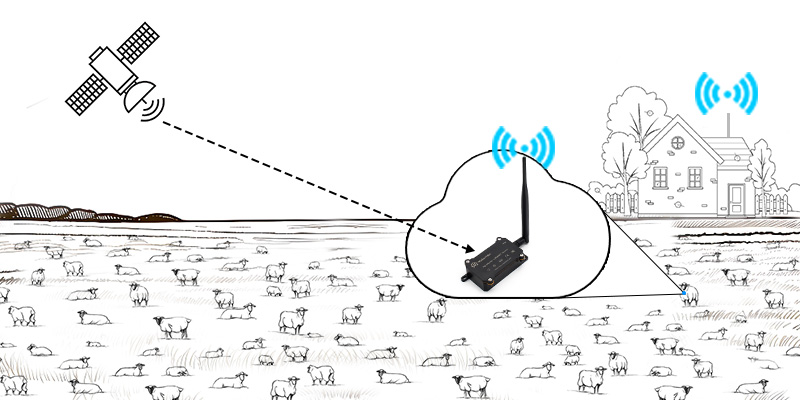

The AgroSense LoRaWAN® GPS Tracker PA1010D is an ideal GPS beacon for geolocation of equipment, same as the AgroSense_NEO-6M ，it reports GPS location every 1 hour( by default, can be set from 5 minute to 24 hours). But the most difference is the PA1010D used on this module. Compares to Neo-6M, the PA1010D module features:
a. Lower power consumption;
b. Smaller, with internal antenna;
c. Quicker positioning;
d. Higher GPS update frequency
with this GPS module, the AgroSense LoRaWAN® GPS Tracker PA1010D has longer working time (>20 month) with the re-chargeable 18650 battery, it can get GPS data with max 2 seconds.

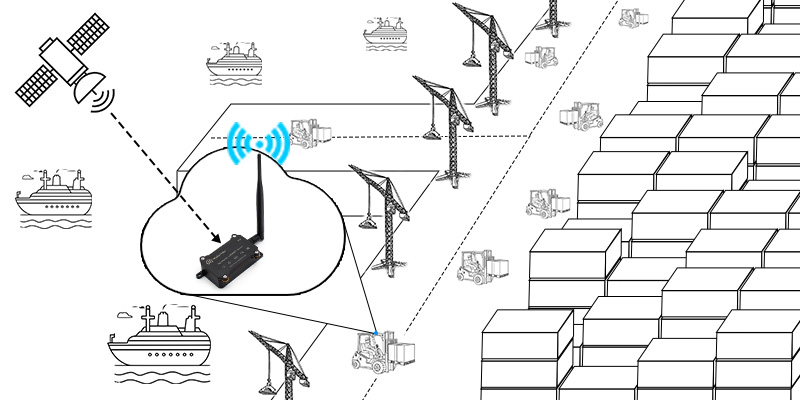

Also there onboard accelerometer LIS3DHTR to detect vibration and reports via LoRaWAN, suitable for kinds of applications such as asset tracking, farm management.
This product mainly features:
- Compatible with Worldwide LoRaWAN®1.0.3 Networks, Support the universal frequency bands EU868/ US915;
- Long Range: At least 2km in urban scenes and 5 km in line of sight scenes.
- Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP68-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
- Simple to Use: Provides LoRaWAN® DEV EUI/ APP EUI/ APP Key, enable user to finish configuration in few steps.
- Cost-effective: With Makerfabs’ strong ability on production, we make this product cost-effective to users, the cost of our product is approximately half that of similar products currently available on the market, suitable for mass implement in field applications such as farm/greenhouse, etc.
- Support LoRaWAN Downlink, to set Transmit Interval Time (60 minutes by default, Minimum 5 Minutes , 24 hours Max). set/close vibration event reporting threshold;
GNSS：
| Product Model | AGLWGT01 |
| Positioning system | GPS，GLONASS，GALILEO，QZSS，SBAS |
| Positioning parameters | longitude：resolution of 0.0001 |
| latitude：resolution of 0.0001 | |
| altitude：resolution of 1 meter | |
| Positioning accuracy | No assisted positioning:3.0 meters (50% CEP) |
| Differential positioning (DGPS, SBAS): 2.5 meters (50% CEP) | |
| Velocity accuracy: 0.1M/S for no assisted positioning, 0.05 0.1M/S for differential positioning | |
| Time accuracy (1PPS output): ±20 nanoseconds RMS |
Wireless Parameters:
| Communication Protocol | Standard LoRaWAN® protocol 1.0.3 |
| Network Access/Operating Mode | OTAA Class A |
| MAX Transmit Power | 21dBm |
| Receiver Sensitivity | -137dBm/125kHz SF=12 |
| Frequency Band | EU868/US915 |
Physical Parameters:
| Power Supply | 1 x 18650 3.7V Lion batteries |
| Operating Temperature | -40°C ~85°C |
| Protection Class | IP68 |
| Dimensions | 131 × 62.7 × 27.5 mm |
| Mounting | Wall Mounting |
| Dimensions | 131 × 62.7 × 27.5 mm |
| Mounting | Wall Mounting |
AgroSense is a series of Makerfabs wireless LoRaWAN® sensors.
It can cover a transmission range of 2km in urban scenes and 5km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 1 years of usage and an industrial IP68 enclosure. It supports at least -40℃ ~ 85℃ operating temperature and can be deployed in harsh environments. AgroSense is compatible with LoRaWAN® V1.0.3 protocol and can work with LoRaWAN® gateway.

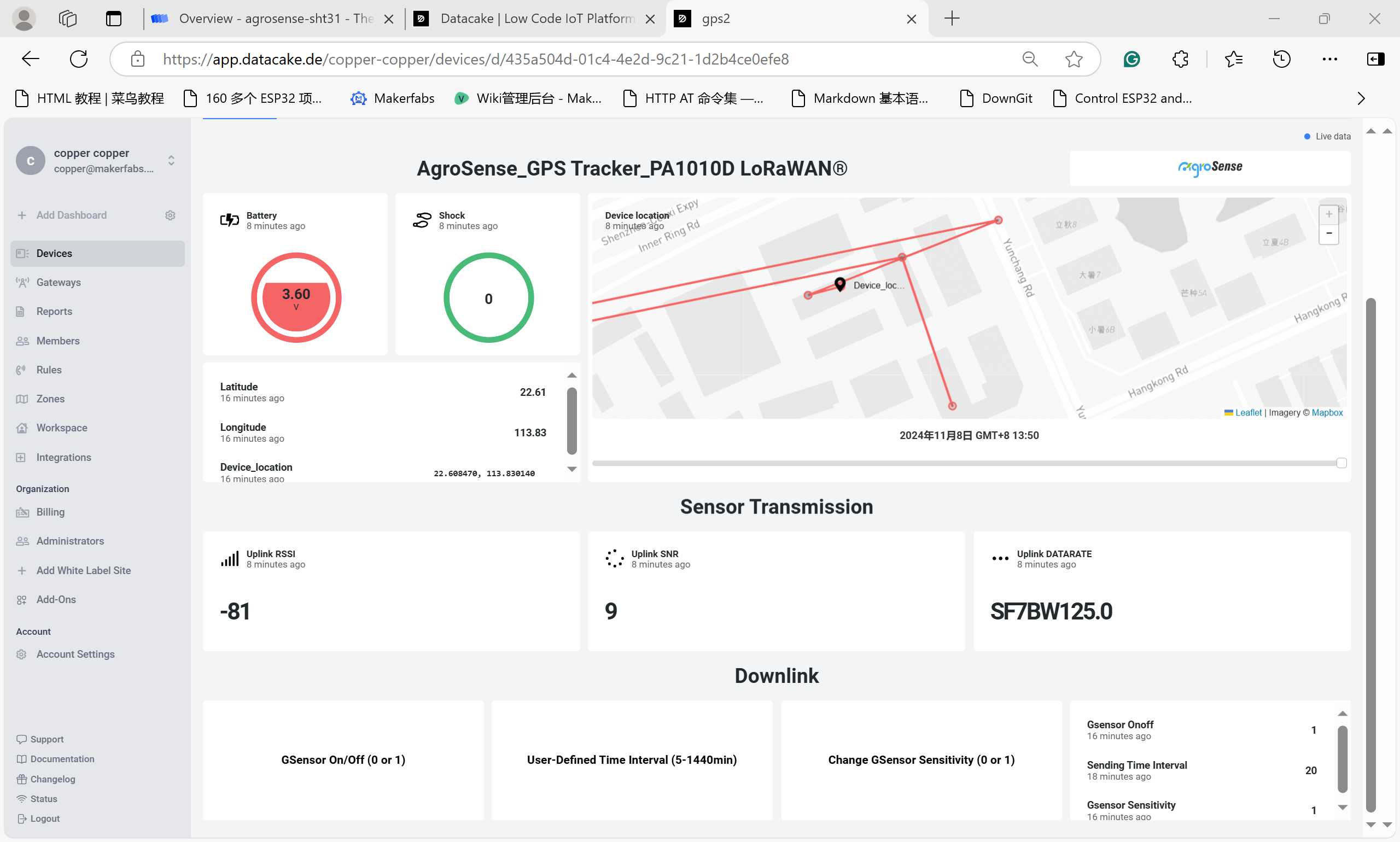

With LoRaWAN® gateway, LoRaWAN® sensor report the result to LoRaWAN® networks, such as The Things Network and DataCake, with simply inputting DEV EUI/ APP EUI/ APP Key:
- DEV EUI: Unique identification of device，authorized by IEEE；
- APP EUI: Unique identification of application；
- APP Key: One of the join network parameters on OTAA mode, calculated by DE EUI；
Part List
AgroSense_GPS Tracker_PA1010D LoRaWAN® *1;
Usage
For country/ area frequency selecting,please check here: regional Parameter
